Removing Air Guide (V8 BITURBO)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

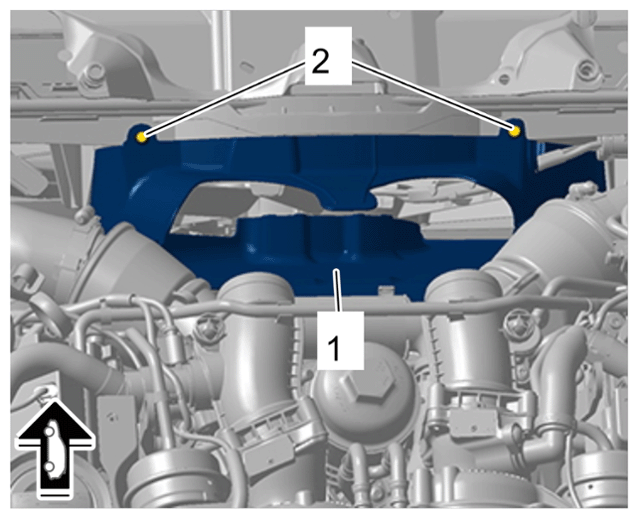

Remove air guide -1- .
1. 1.1 Unclip clips -2- .
2. 1.2 Remove air guide -1- by pulling it upwards.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
