Preliminary Work

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Remove air-cleaner cowl.

    > 242719 REMOVING AND INSTALLING AIR-CLEANER COWL

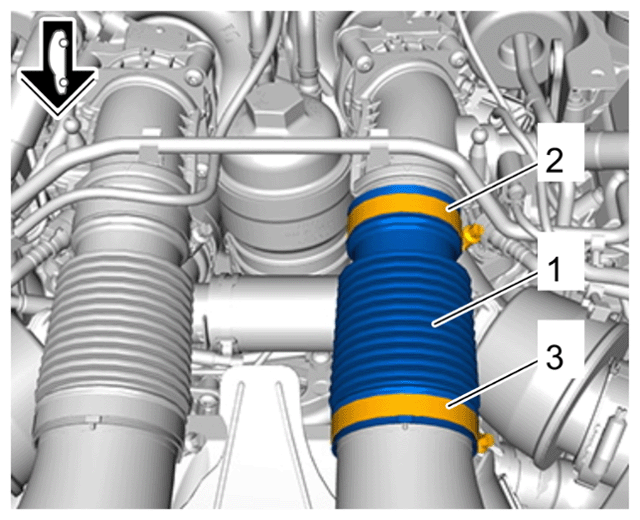

  2. Remove both suction hoses -1-  .
    1. 2.1 Open the clamps -2 and 3-  and pull off suction hoses.
    G15880848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction hose
