Installing Air Guide (V8 BITURBO)
WARNING: This page is about a different variant/trim than selected.
- Install air guide -1-
.
- 1.1 Position the air guide -1-
from above and check that the lugs engage in the relevant cut-outs on the radiator frame at the bottom.
- 1.2 Clip in clips -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

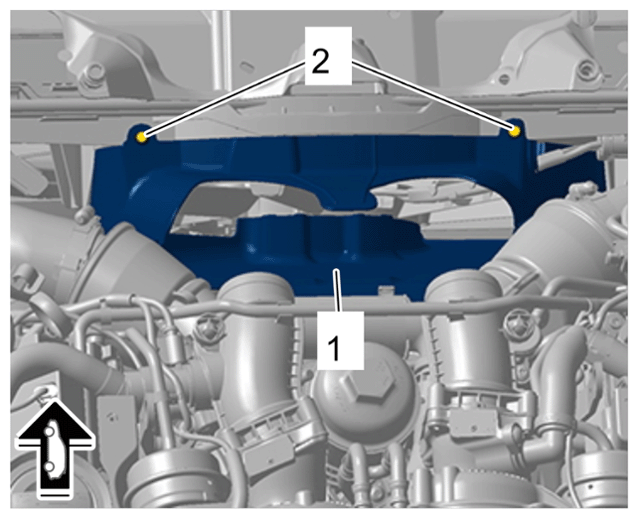

Air guide
