Removing Seat Position Sensor

Information

Observe the following specifications for all work described:

• country-specific, national, legal and official regulations,
• local restrictions and export restrictions,
• manufacturer's specifications from component and vehicle manufacturers,
• component-specific specifications.

These strict specifications apply in particular:

• Storage, installation and removal, transport and disposal of vehicles, assemblies, operating materials and auxiliary materials,
• handling of defective and potentially hazardous vehicles as well as assemblies,
• handling of battery electric vehicles and high-voltage components.

For this purpose, take into account relevant and qualified information sources such as local authorities, responsible importers, associations and specialist website. Deliver items to be disposed of only to authorized reception points.

1. Removing the seat.

   > WM, 720119 REMOVING AND INSTALLING FRONT SEAT "REMOVING "

2. Unscrew screw on seat position sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

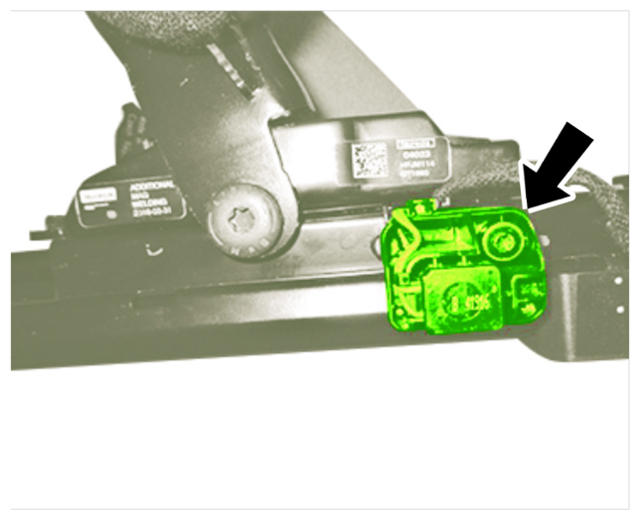

   Seat position sensor

3. Remove sensor from upper rail.
4. Re-cut thread on press nut using an M4 thread cutter to remove the rest of the micro-encapsulation.
5. Disconnect sensor from wire harness.
6. Drill out rivet on counterplate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

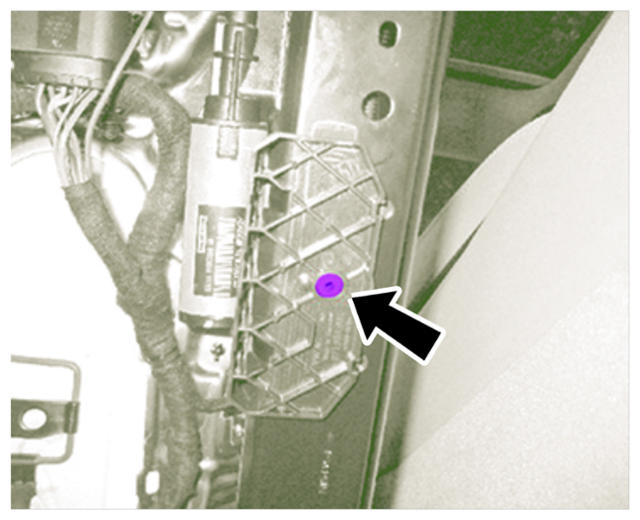

   Counterplate

7. Unclip counterplate at the seat rail.
8. Clean seat rail and upper rail and remove chips.
