Installing Occupant Detection Control Unit

WARNING: This page is about a different variant/trim than selected.

Information

The electric plug connection for the occupant detection control unit must be inserted straight as otherwise the seal will be damaged. Then check that the seal is fitted securely.

Install occupant detection control unit -3- .
1. 1.1 Check that the seal for the electric plug connection -1- is at the correct installation position before inserting it.
2. 1.2 Plug in electric plug connection -1- .
3. 1.3 Position occupant detection control unit -3- .
4. 1.4 Screw in and tighten screws -2- > Tightening torque 3 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

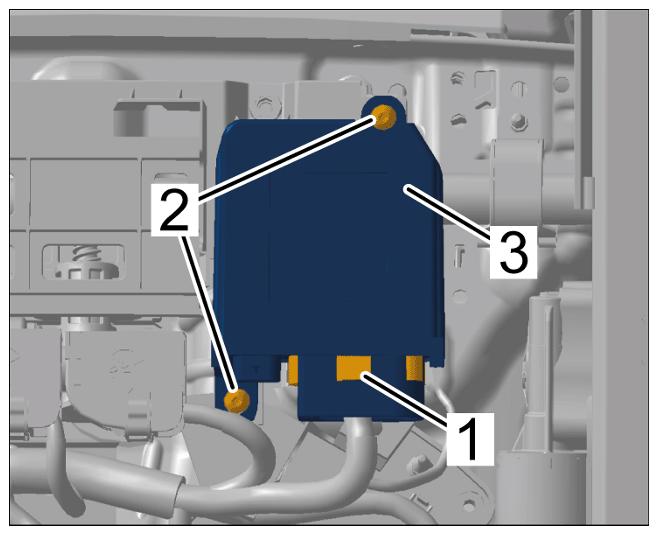

Installing occupant detection control unit
