Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

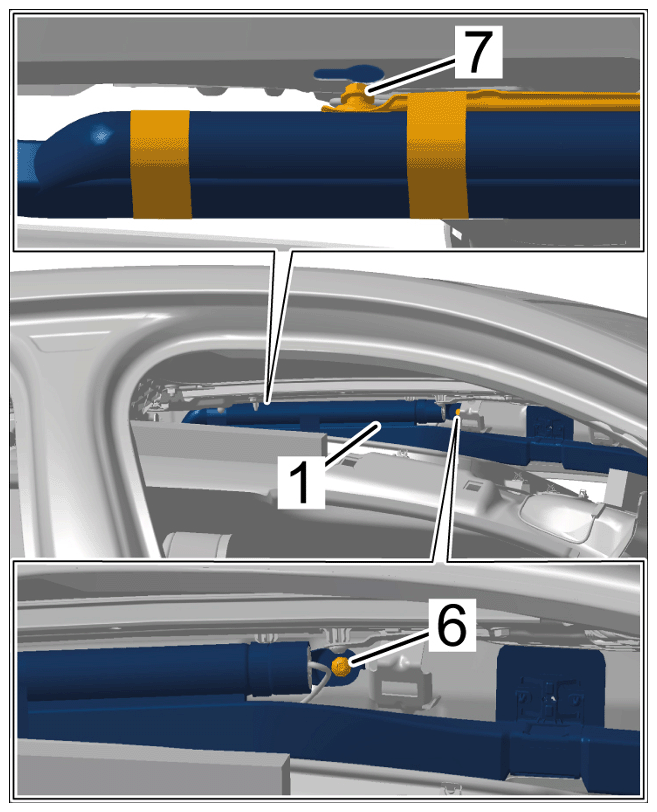

| Screw securing head airbag to A-post | Position 4 | Tightening torque | 5.6 Nm (4.1 ftlb.) | ||
|
Screw securing head airbag to A-post |
|||||
| Screw securing head airbag to roof frame | Position 6 | Tightening torque | 5.6 Nm (4.1 ftlb.) | ||
|
Screw securing head airbag to roof frame |
|||||
