Removing Head Airbag Unit
- Triggering of airbag unit.
- System faults can occur.
→ Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.
→ External power supply must be de-energized.
→ Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.
→ Wait 1 minute after disconnecting the battery.
→ Only pull off connector on the triggering unit after the waiting time has elapsed.
→ Keep space in front of the airbag unit free.
→ Replace damaged parts.
→ Always set airbag units down with the blow-out opening facing upwards.
→ Do not place any objects on the airbag units.
→ Store airbag units in a safe place.
→ Avoid contact with grease, oil, detergents, liquids or similar substances.
→ Store airbag units in a cool place. Maximum temperature: 90°C.
Information
Dispose of replaced and non-ignited airbag and seat-belt pretensioner units in accordance with local legal requirements and transport regulations.

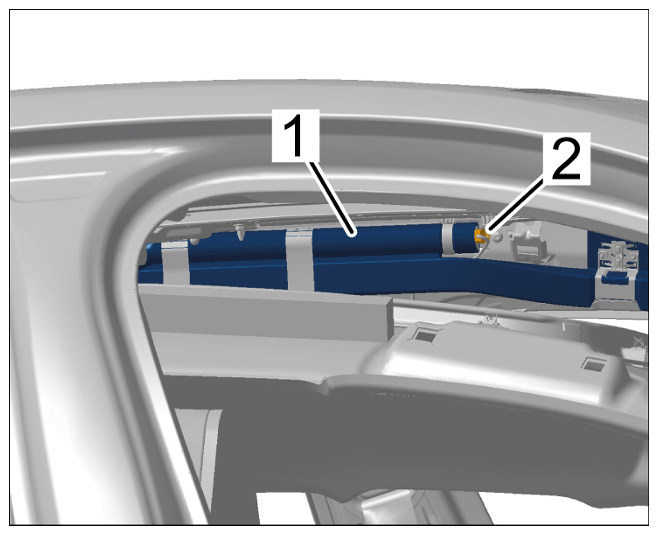

- Disconnect electric plug connection -2-
on head airbag unit -1-
.
Disconnecting electric plug connection

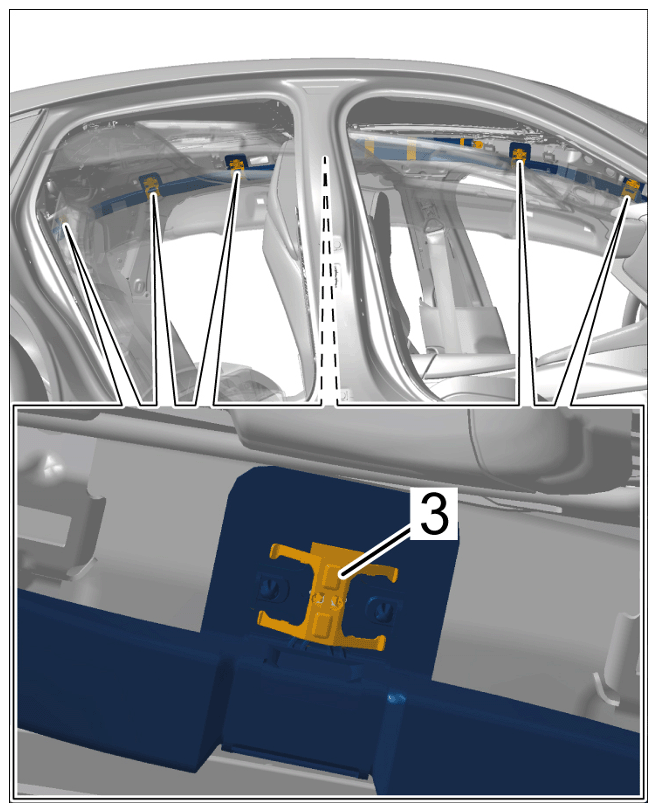

- Press clips -3-
together using pointed-nose pliers and unclip them.
Removing clamps

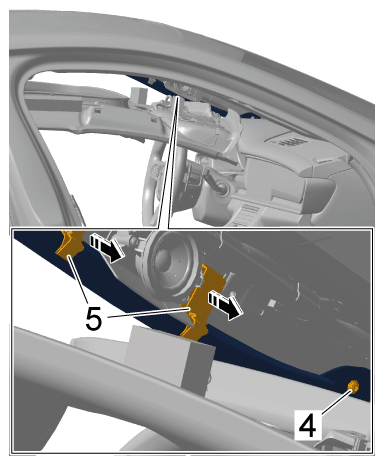

- Unscrew screw -4-
and unclip holder -5-
from A-pillar -arrows-
.
Unclipping holders

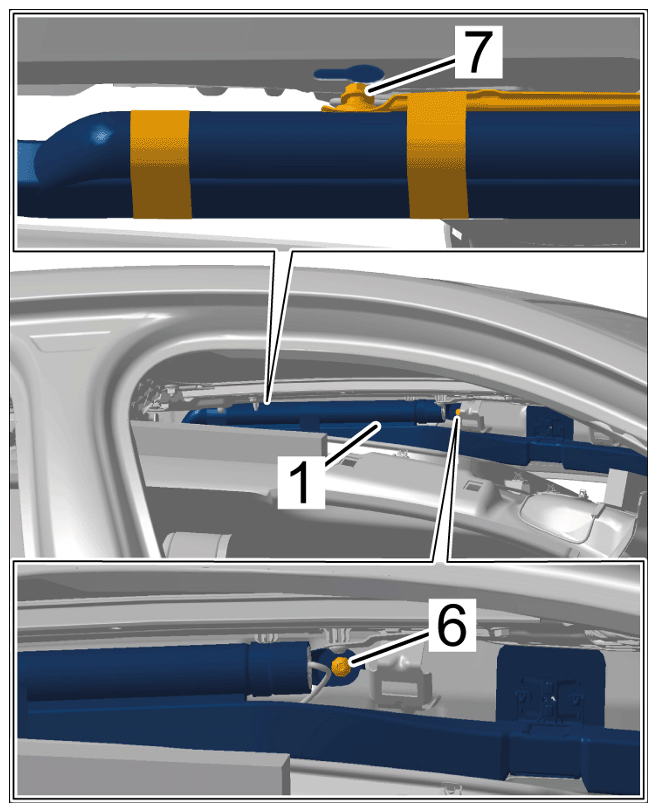

- Unscrew screw -6- and guide head airbag unit -1- with guide -7- forward out of the bracket.
Removing head airbag unit
