Removing Front Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

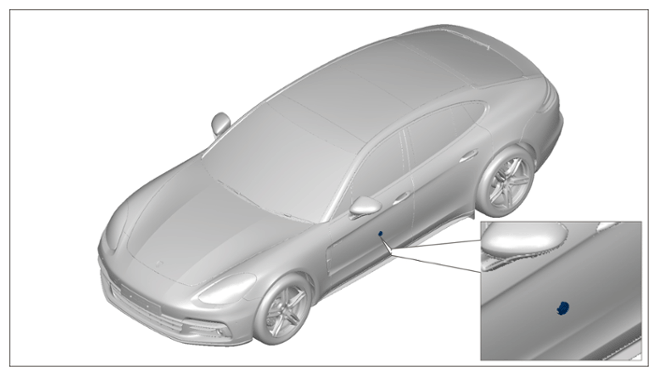

Installation position of front pressure sensor
- Release and disconnect electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

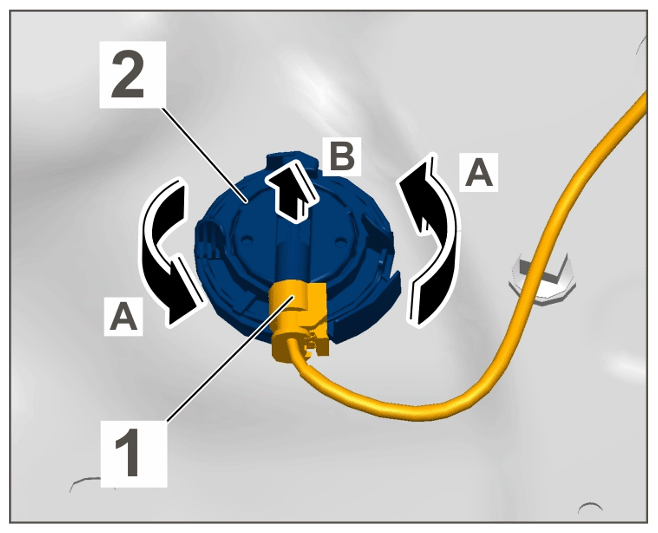

Pressure sensor
Turn the pressure sensor locking mechanism anti-clockwise -arrow A-
and remove pressure sensor -2-
. -arrow B-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pressure sensor
