Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

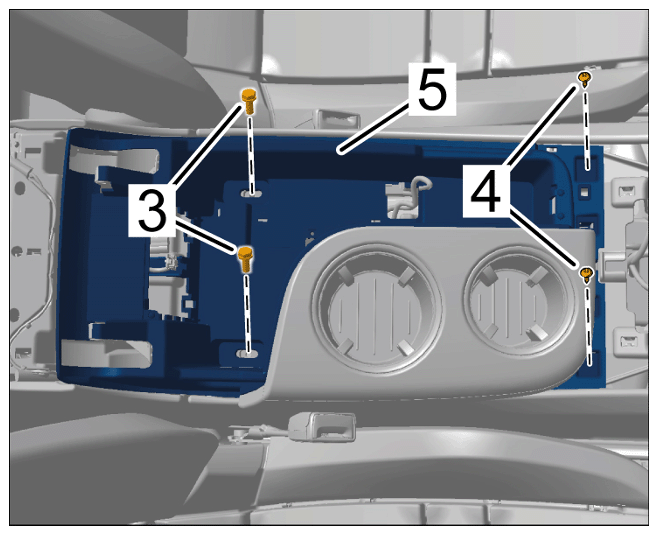

| Screws for centre console oddments tray | Item 3 | Tightening torque | 8 Nm (6 ftlb.) | +/- 0.5 % | |
|
Screws for oddments tray |
|||||

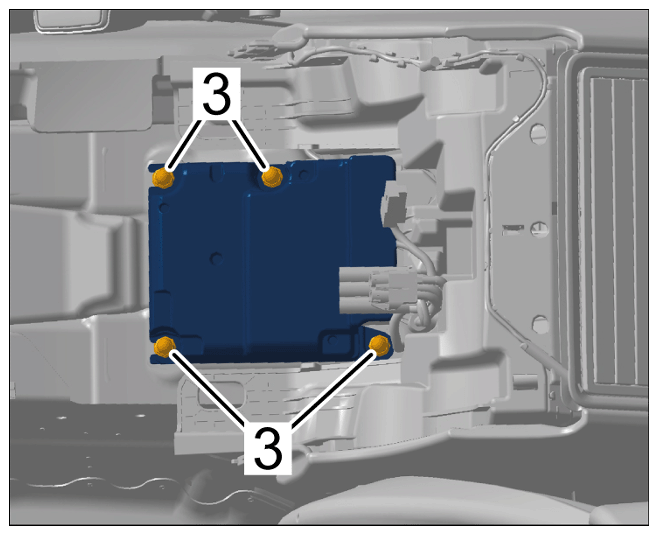

| Nuts securing airbag triggering unit to centre console | Item 3 | Tightening torque | 9 Nm (6.5 ftlb.) | +/- 0.5 Nm (0.3 ftlb.) | |
|
Unscrewing nuts |
|||||
