Installing Throttle Housing
WARNING: This page is about a different variant/trim than selected.

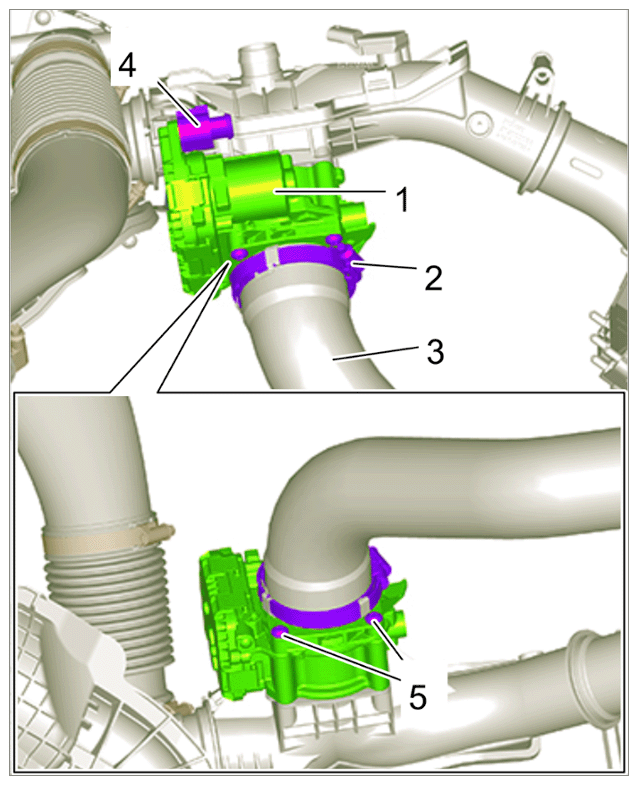

- Install throttle housing -1-
.
- 1.1 Check that the seal is fitted correctly.
- 1.2 Move throttle housing -1-
into installation position and tighten screws -5-
.
> Tightening torque 7 Nm (5 ftlb.)
- 1.3 Plug in and lock electric connector -4- .
- 1.4 Connect and secure pressure hose -3-
.
> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
Throttle housing
