Installing Spark Plugs
WARNING: This page is about a different variant/trim than selected.
NOTE:
Broken spark plug electrodes
- Bits of electrodes can fall into the combustion chamber
- Screw in spark plugs using > VAS 6919 - Spark Plug Socket-Wrench Insert, a/f 14-1-
and > VAS 6925 - Extension, 3/8"-2-
and tighten according to specifications.
V6 and V8: > Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)

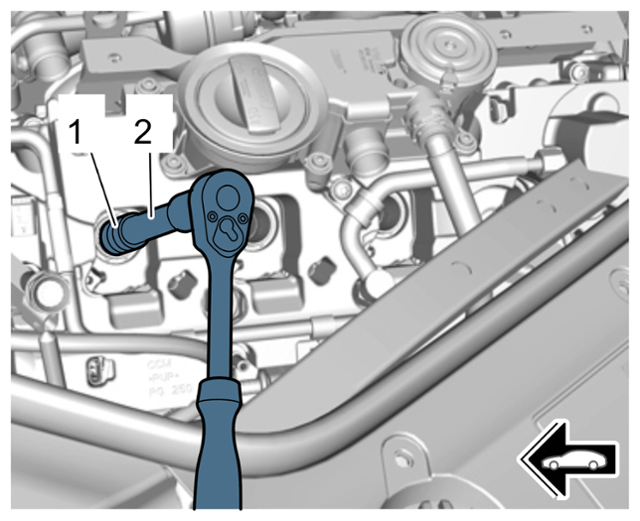

Tightening spark plug (V8 biturbo engine)
