Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Switch ignition off and remove ignition key.
Remove strut.
> WM, 408619 REMOVING AND INSTALLING STRUT (A-STRUT)
Remove engine cover (design cover).
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)

Only for ignition coil for cylinders 2 and 3:

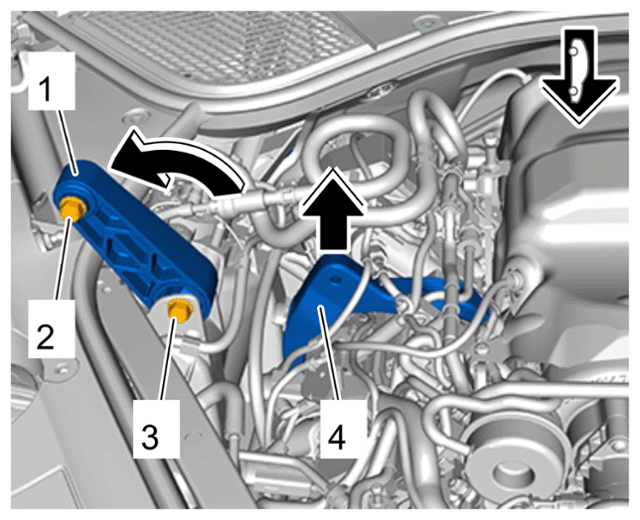

Unscrew screw -2- on the torque support bracket -4- and swivel torque support -1- upwards -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Torque support

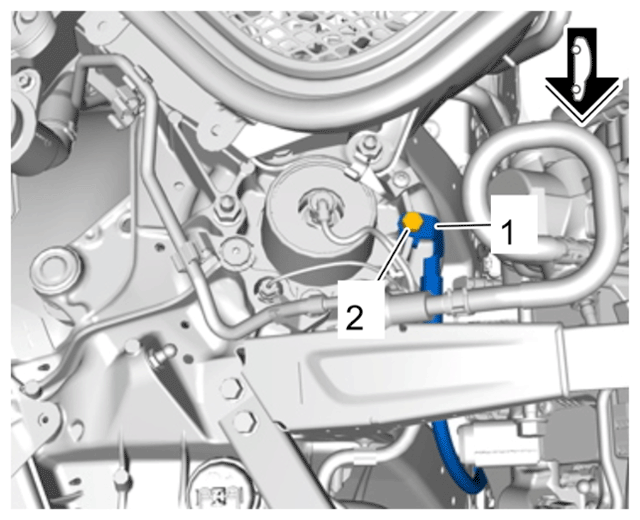

Disconnect ground cable -1- on the right spring strut dome.
1. 5.1 Unscrew screw -2- and route cable to the front (in direction of travel).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground point for right spring strut dome

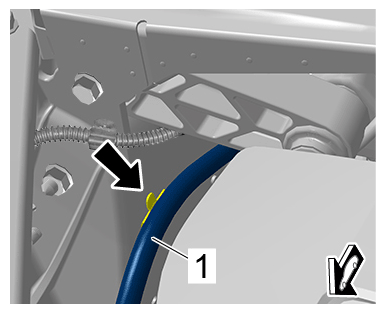

Unclip B+ cable -1- on the right spring strut dome -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ cable on right spring strut dome

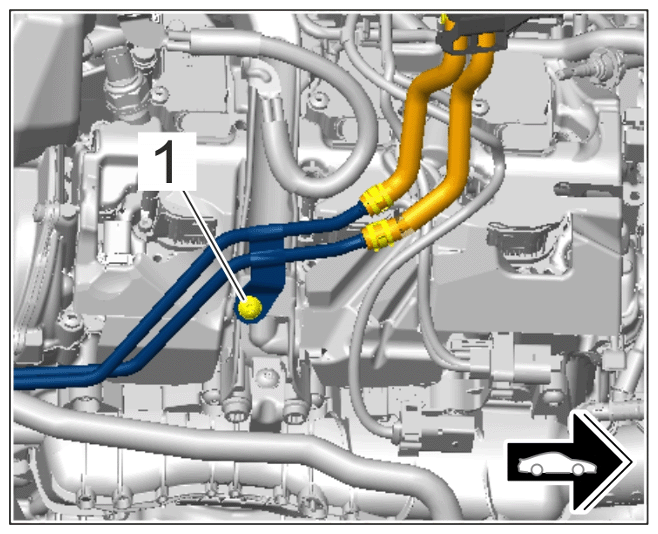

For vehicles with particle filter: Release differential pressure line on torque support bracket:

7.1 Loosen and unscrew screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential pressure line on torque support bracket

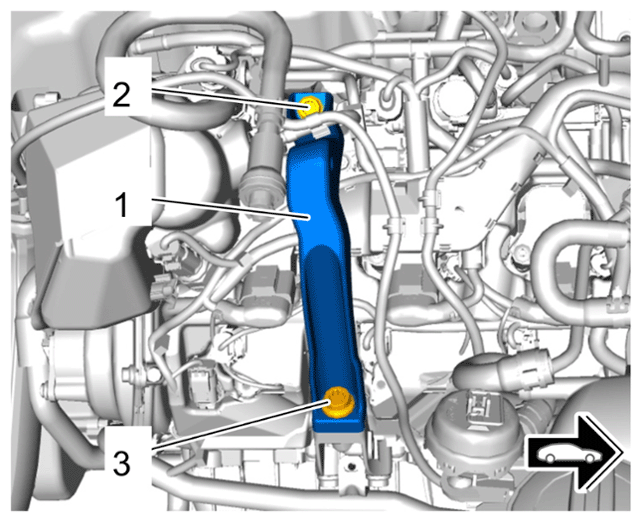

Remove bracket for torque support -1- .

8.2 Press B+ cable down, guide out bracket -1- under the fuel line and guide it carefully past the spring strut dome in direction of travel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Torque support bracket
