Removing Line For ATF Cooling

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

Have suitable stoppers ready for closing off the line connections.
Remove exhaust system holder -1- .
1. 2.1 Unscrew screws securing holder to automatic transmission -2- .
2. 2.2 Unscrew screw securing holder to exhaust system -3- .
3. 2.3 Remove exhaust system holder -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

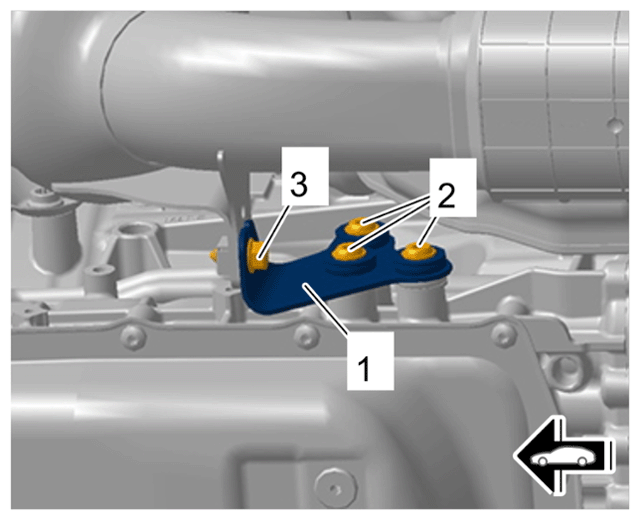

Exhaust system holder
Place a drip pan underneath to collect emerging oil.
Disconnect lines for ATF cooling -1- .
1. 4.1 Unscrew screw on line connections -2- .
2. 4.2 Unscrew screw on holder -3- .
3. 4.3 Disconnect line connections from automatic transmission.
4. 4.4 Close off line connections using stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

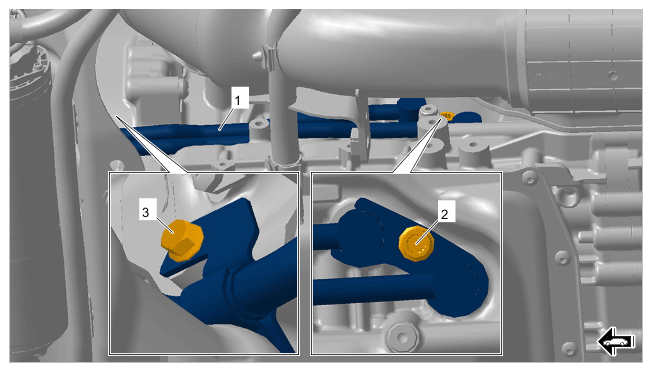

Lines for ATF cooling
Remove lines for ATF cooling -1- .
1. 5.1 Release and disconnect line connections on ATF cooler -2 and 3- .
2. 5.2 Guide out lines for ATF cooling -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

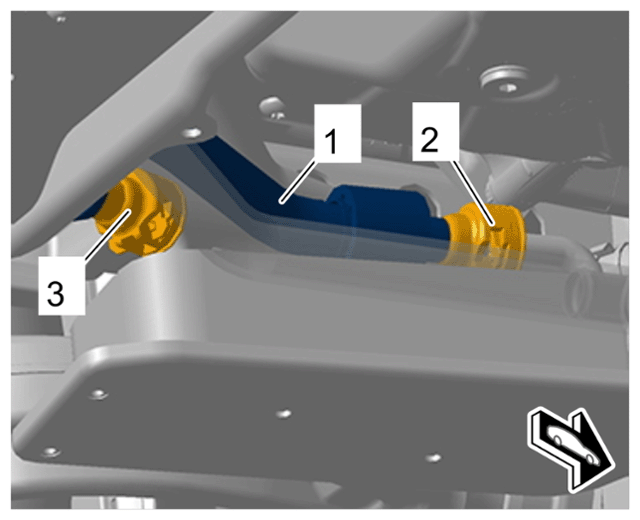

Removing lines for ATF cooling
