Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Fit ATF cooling line (front section) on ATF cooling line (rear section).
    1. 1.1 Fit ATF cooling line (front section) -1-  from ATF cooling line (rear section) -3-  .
    2. 1.2 Fit clamps -2-  .

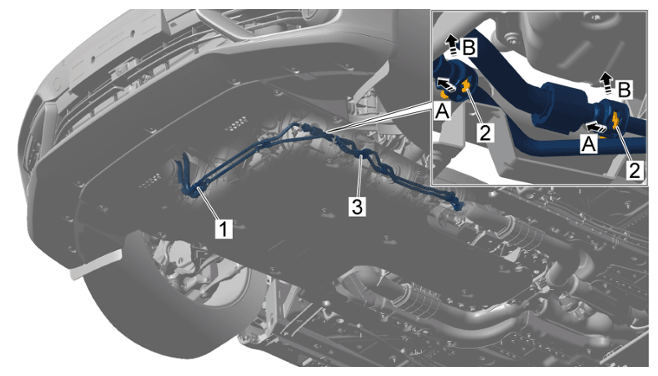

      G15888744Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing ATF cooling line (front section)

    3. 1.3 Fit holder and clip in clips -3-  on ATF cooling line (front section) -1-  .

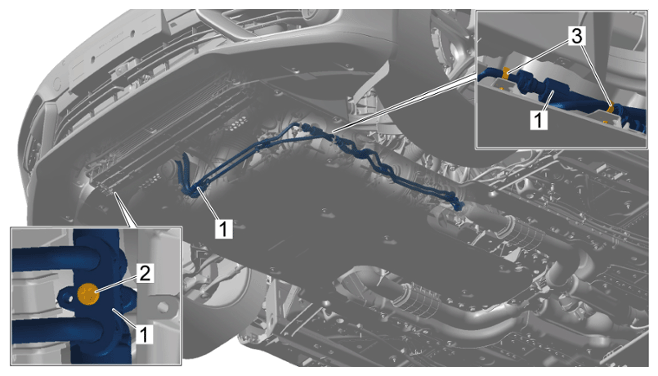

    G15888745Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing holder

  2. Fit front left wheel.

    > WM, 440519 REMOVING AND FITTING WHEEL

  3. Fill up the ATF.

    > 370235 CHECKING AND TOPPING UP THE ATF
