Installation Position Of ATF Cooling Line

WARNING: This page is about a different variant/trim than selected.

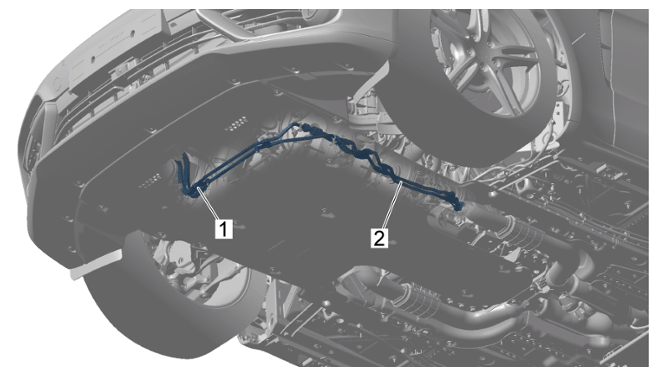

Fig 1: Identifying ATF Cooling Line Installation Position
G15888746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of ATF cooling line

1  ATF cooling line (front section)
2  ATF cooling line (rear section)
