Removing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Information

The sealing ring on the pressure sensor is pressed on.
After removing a pressure sensor, the sensor must be replaced.

Information

The pressure sensors can be diagnosed. As a result, a faulty pressure sensor can be detected in the PIWIS Tester.
Installation overview of pressure sensor (K3, all-wheel drive vehicles only):

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

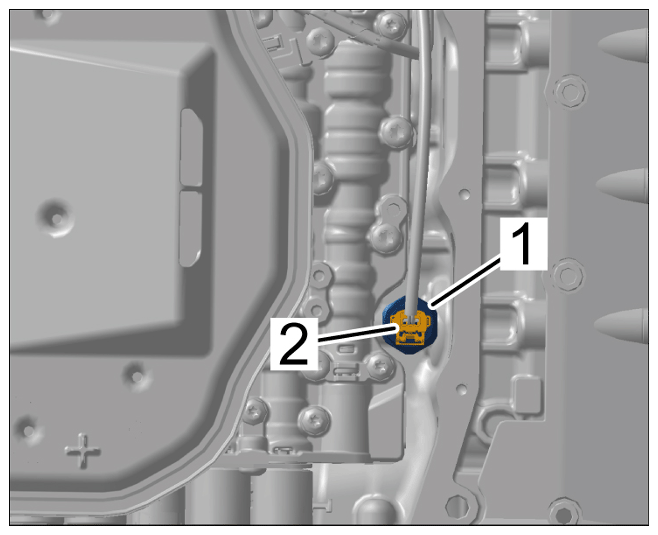

Installation position of pressure sensor

Remove pressure sensor -1- .
1. 1.1 Release and pull off cable plug -2- .
2. 1.2 Loosen pressure sensor -1- and unscrew it by hand.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

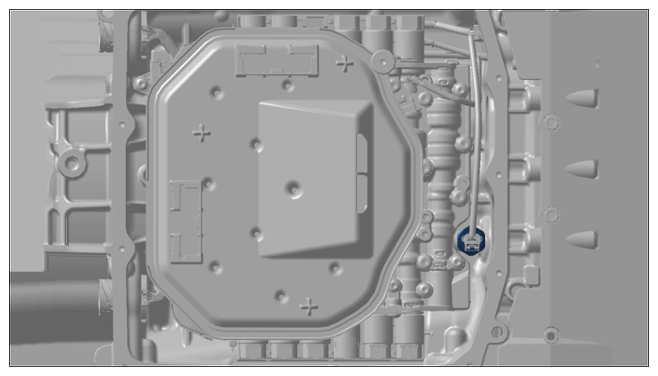

Pressure sensor in hydraulic space
