Installing Primary Catalytic Converter

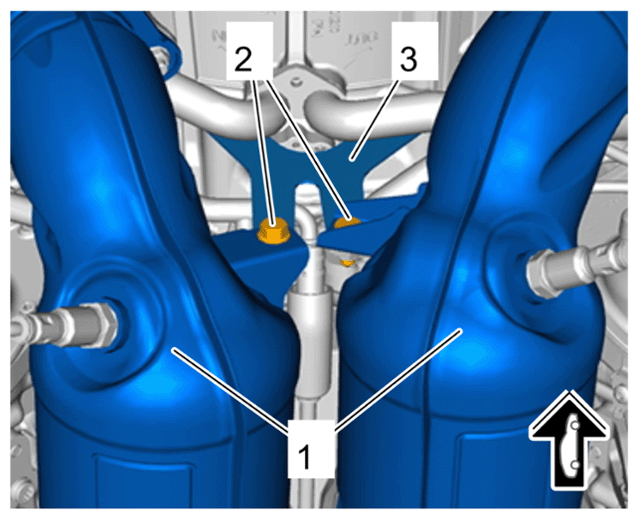

1. 1.1 Move primary catalytic converter -1-  into installation position.
2. 1.2 Fit primary catalytic converter -1-  on holder -3-  .
   1. 1.2.1 Fit and tighten screws -2-  .

   > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

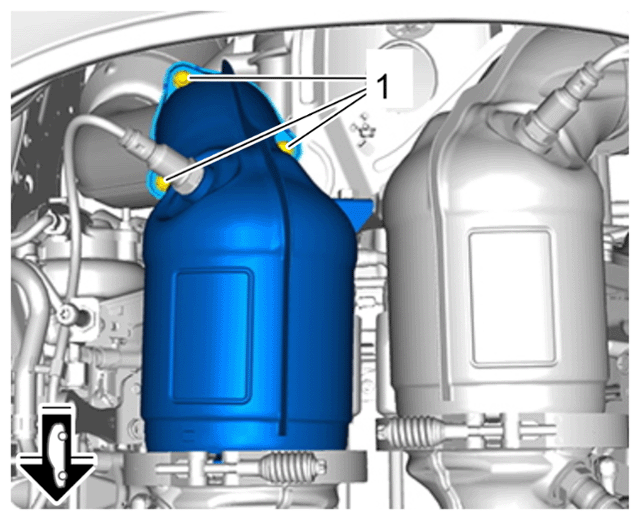

   Instating primary catalytic converter

1. 2.1 Replace gasket.
2. 2.2 Fit and tighten -1-  nuts.

   > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Catalytic converter flange

Replace V-band clamp.

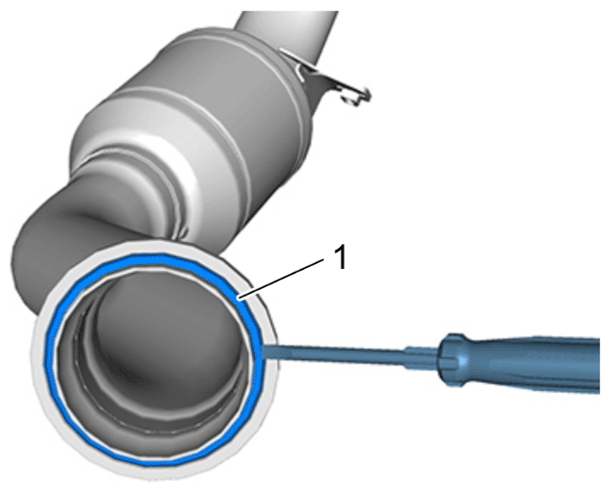

1. 3.1 Replace seal -1-  on V-band clamps.
   1. 3.1.1 Carefully lever out the seal using a screwdriver and insert a new seal.
2. 3.2 Tighten new V-band clamp for securing primary catalytic converter to catalytic converter.

   > Tightening torque 15 Nm (11 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   V-band clamp seal

> 247319 REMOVING AND INSTALLING OXYGEN SENSOR DOWNSTREAM OF CATALYTIC CONVERTER

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensors downstream of catalytic converter

1. 5.1 Insert the new seal.
2. 5.2 Fit primary catalytic converter on turbocharger.
3. 5.3 Carefully tighten screw -2-  on V-band clamp -1-  .

   > Tightening torque 7 Nm (5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

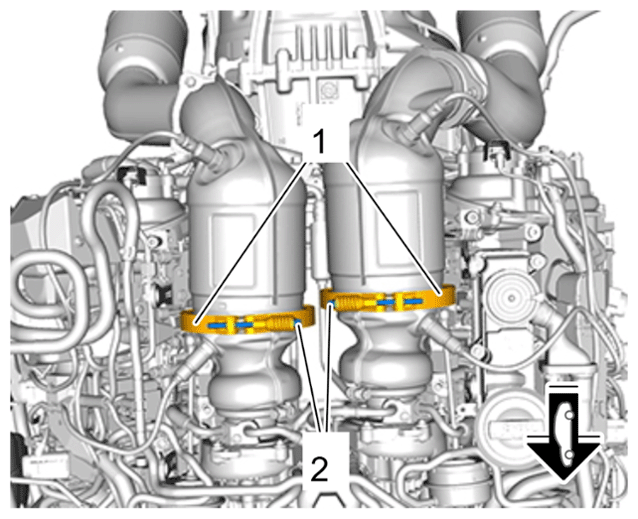

   V-band clamps on turbocharger/catalytic converter flange
