Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Intake scoop to air-cleaner cowl | Screw-type clamp | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||
| Intake pipe to intake scoop | Screw-type clamp | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||

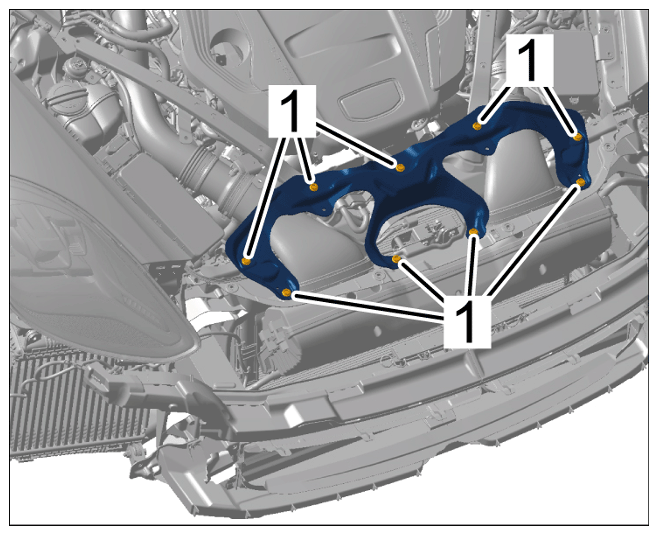

| Screw securing reinforcement to module carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Reinforcement on module carrier |
