Removing Sealing Ring For Front Output Shaft

WARNING: This page is about a different variant/trim than selected.

Have a suitable container ready to catch escaping ATF.

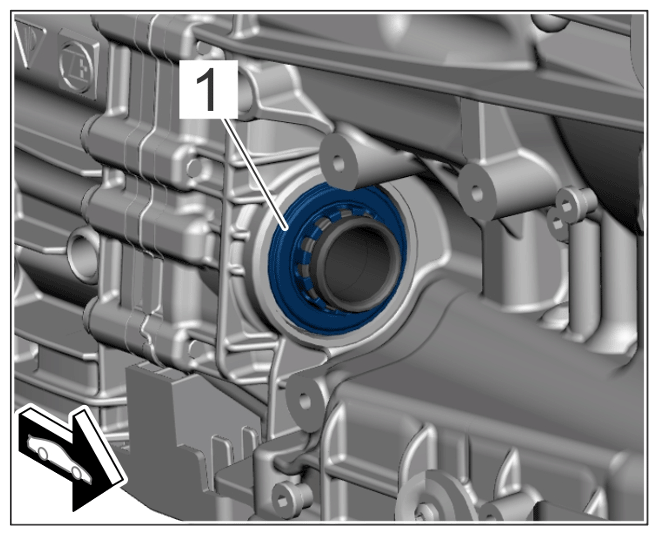

Carefully remove cover ring -1- at the transmission output using a screwdriver.
Replace cover ring during installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover ring

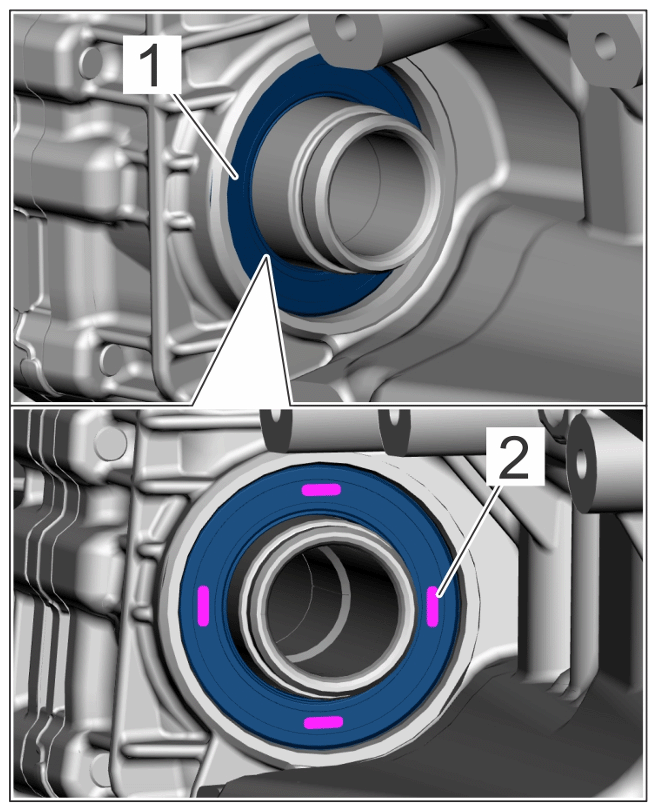

Variant 1: Remove sealing ring -1- with the > VAS 6965 - puller set over the disassembly holes -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disassembly holes on sealing ring

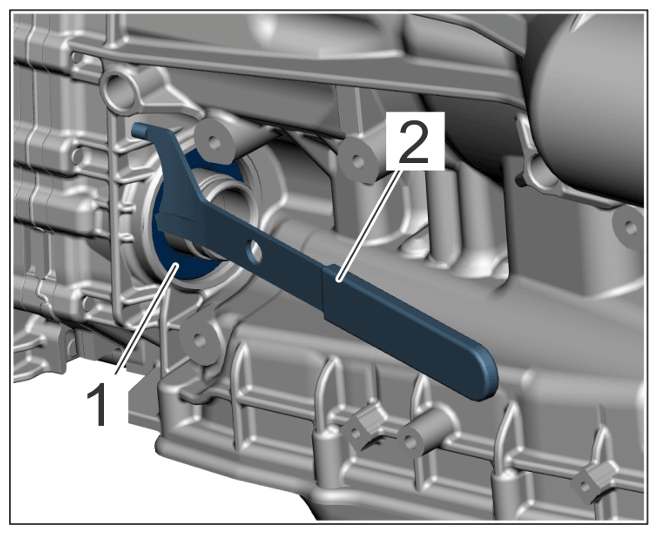

Variant 2: Carefully remove sealing ring -1- using > T20143 - extractor hook-2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using puller hook T20143
