Tightening Sequence For Chain Housing Cover
WARNING: This page is about a different variant/trim than selected.
| Tightening sequence: |
Tightening torque/torque angle |
| -20- |
Initial tightening |
| -1 to 19- |
Initial tightening |
| -20- |
Tightening torque |
| -1 to 19- |
Final tightening |
| -20- |
Final tightening |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

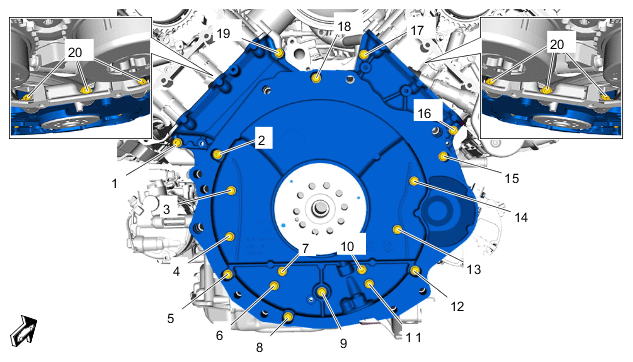

Tightening sequence for chain housing cover
