Solenoid Hydraulic Valve For Valve Lift Adjustment

WARNING: This page is about a different variant/trim than selected.

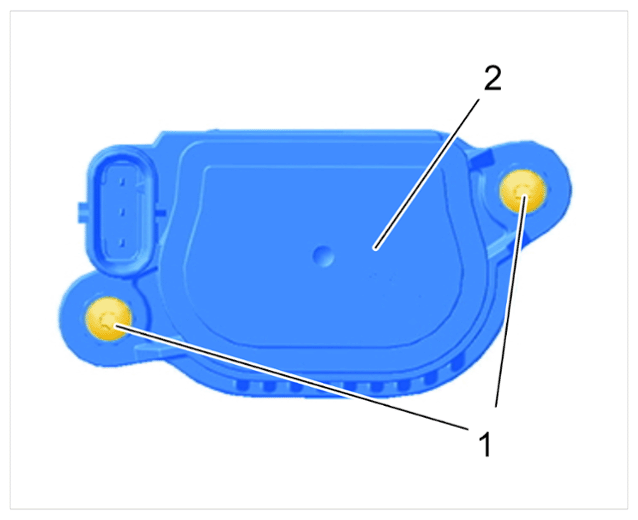

Fig 1: Solenoid Hydraulic Valve For Valve Lift Adjustment Components Location With Torque Specification
G15821848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Solenoid hydraulic valve for valve lift adjustment

1  Solenoid hydraulic valve for valve lift adjustment
2  Screw/replace > Initial tightening 3 Nm (2 ftlb.)  > Torque angle + 90°
