Screw Plug Securing Crankshaft
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

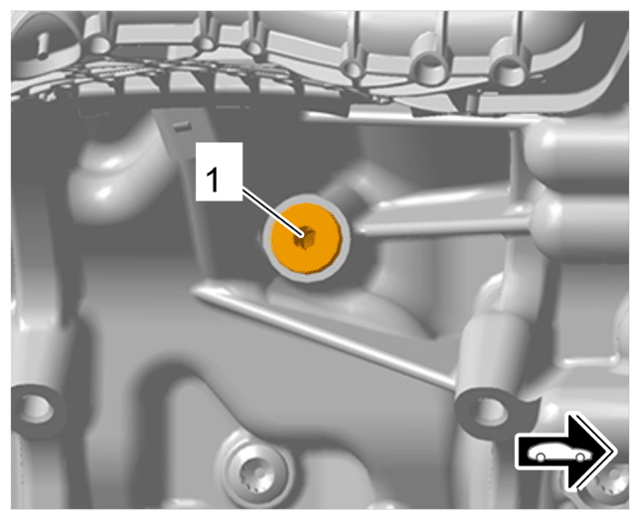

Screw plug securing crankshaft
| 1 |
Screw plug for securing crankshaft/old type with sealing ring
> Tightening torque 25 Nm (18.4 ftlb.) |
| 1 |
Screw plug for securing crankshaft/new variant with micro-encapsulated screw
> Tightening torque 40 Nm (29.5 ftlb.) |
