Preliminary Work

  1. Lift the vehicle.

    > 4X00IN LIFTING THE VEHICLE

    Removing tailpipe covers

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Mark installation position of tailpipe covers -2-  .

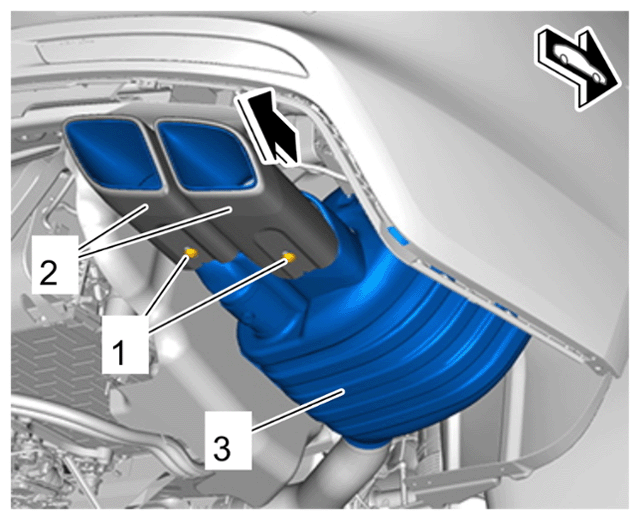

  2. Unscrew screws -1-  and pull tailpipe covers -2-  off the rear silencer -3-  (-arrow-  ).
G15877589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe covers
