Installing Tailpipe Cover

  1. Place tailpipe covers -2-  in installation position.
  2. Fit and tighten screws -1-  .

    > Tightening torque 8 Nm (6 ftlb.) +/- 1 Nm (0.5 ftlb.)

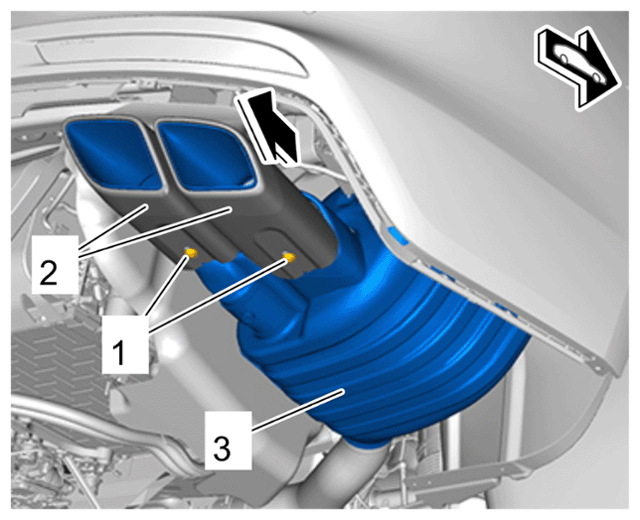

    G15877590Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tailpipe covers
