Technical Values

Location	Des...	Type	Basic val...
Ball clamp securing exhaust system to exhaust pipe		Tightening torque	35 Nm (26 ftlb.)
Fastening screws securing exhaust system to body	M8	Tightening torque	23 Nm (17 ftlb.)
Exhaust clamp	Replace rear silencer	Tightening torque	33 Nm (24 ftlb.)
Screws for reinforcement strut on tunnel bridge	Items 1 and 2	Tightening torque	50 Nm (37 ftlb.)

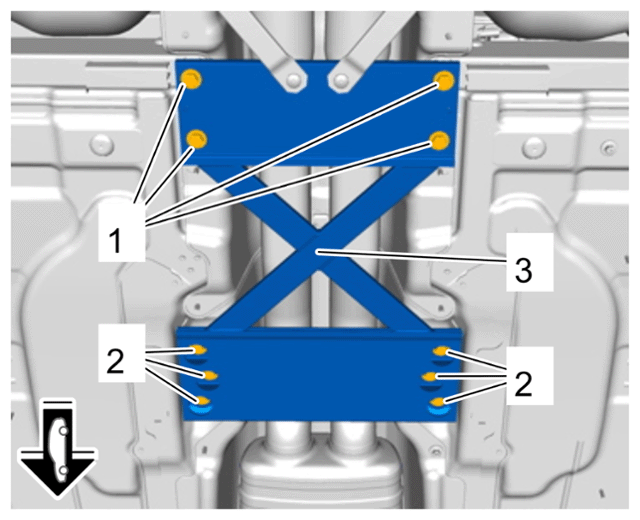

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for reinforcement strut on tunnel bridge
