Preliminary Work

  1. For heat shields on centre tunnel:

    Remove exhaust system.

    > 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

  2. For heat shields on rear bumper:

    Remove rear apron.

    > WM, 635519 REMOVING AND INSTALLING REAR APRON (Coupe) , WM, 635519 REMOVING AND INSTALLING REAR APRON (Wagon)

  3. For heat shield on rear silencer:
    1. 3.1 Remove exhaust system.

      > 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

    2. 3.2 Remove heat insulation at the centre, luggage compartment pan -1-  .
      1. 3.2.1 Unscrew screws -2-  and nuts -3-  .
      2. 3.2.2 Remove heat insulation at the centre, luggage compartment pan -1-  .

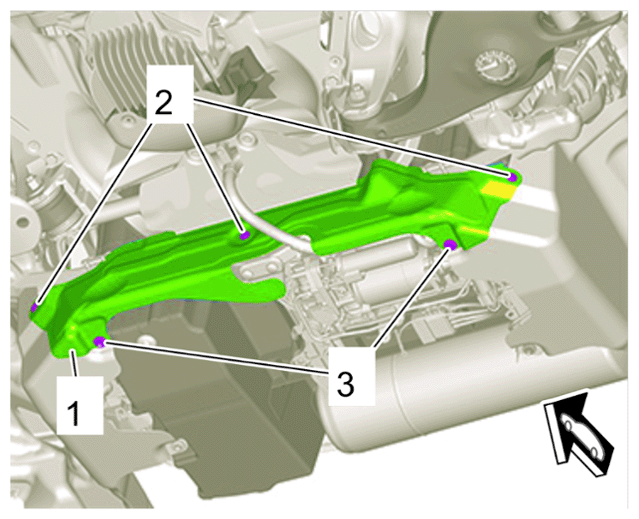

      G15877554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Heat insulation at the centre, luggage compartment pan
