Installing Heat Shield On Centre Tunnel

  1. Install heat shield on centre tunnel.
    1. 1.1 Move heat shield for centre tunnel -3 to 5-  into installation position.
    2. 1.2 Fit and tighten nuts -1-  and screws -2-  .

      Nuts -1-  > Tightening torque 2.5 Nm (1.75 ftlb.)

      Screws -2-  > Tightening torque 2.5 Nm (1.75 ftlb.)

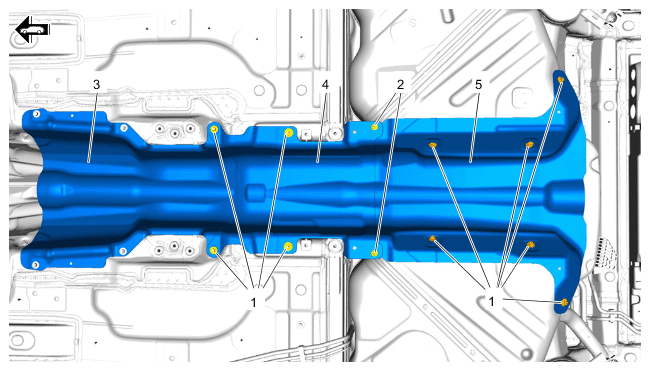

      G15877558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Heat shields on centre tunnel
