Activating Emergency Call System
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Control unit programming/coding is aborted
- Malfunctions in the control unit, even during programming
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming/coding.
→ Connect the battery charger with at least > current 90 A to the vehicle battery.
Information
If the ERA GLONASS control unit is replaced, the following information must be sent to ivsactivation@aoglonass.ru:
- ICC ID
- VIN (Vehicle Identification Number)
- Body number
- Brand
- Model
- Colour
The CSV file must not be bigger than 75 kByte.
The information in the CSV file should be UTF-8-encoded.
Information
The PIWIS Tester instructions take precedence since the description may be different with later Tester releases.
The procedure described here has been structured in general terms. Different text or additional information may appear on the PIWIS Tester .
Information
If commissioning fails or if the test call for the emergency call system fails, a vehicle analysis log (VAL) must be created using the > 9818/ET 500 - Y-connector, Russia and the importer must be contacted.
A vehicle with an emergency call system that is not fully functional cannot be handed over to the customer!
If the emergency call system issues the announcement "Test failed", the activation process has failed even if the LED on the SOS button is permanently green.
- Connect the Tester to the service disconnector using > 9818/ET 500 - Y-connector, Russia .

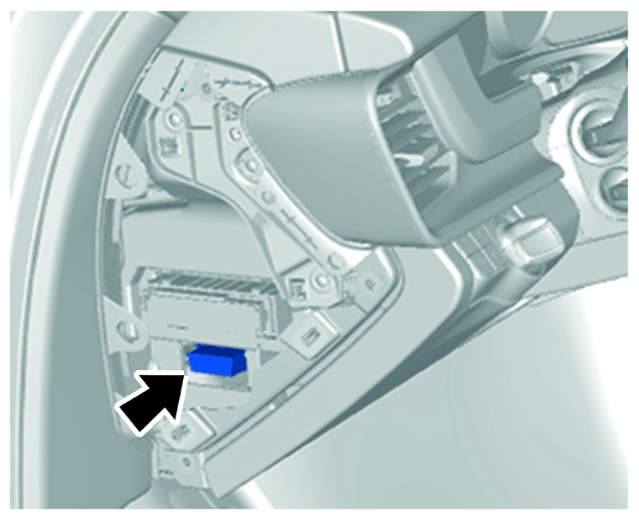

- Remove dashboard cover at the left. Connect the red cable to the emergency call system (ERA GLONASS) socket.
Connecting PIWIS Tester and emergency call system
- Connect the black cable to the service disconnector socket in the vehicle.
- Select the vehicle type if required.
- Select Emergency call system (ERA GLONASS) in the overview. Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
- Maintenance/repairs must now be selected.
- Control unit start-up must now be selected. Press F12 to continue and then press F8 to start.
- Follow the instructions on the Tester.
- A message appears reporting that the start-up procedure was completed successfully.
Information
If the Tester and VCI are not disconnected from the vehicle, the activation process cannot be performed.
- Exit the diagnostic application. Disconnect the Tester from the vehicle.
- Leave the ignition switched on until the LED on the SOS button (centre console) changes from flashing green to permanent green. (This can take up to 2 minutes)
- Control unit is activated. Emergency calls (SOS button) and test calls (additional button) can be made.
- Park the vehicle in a place where mobile phone reception is guaranteed.

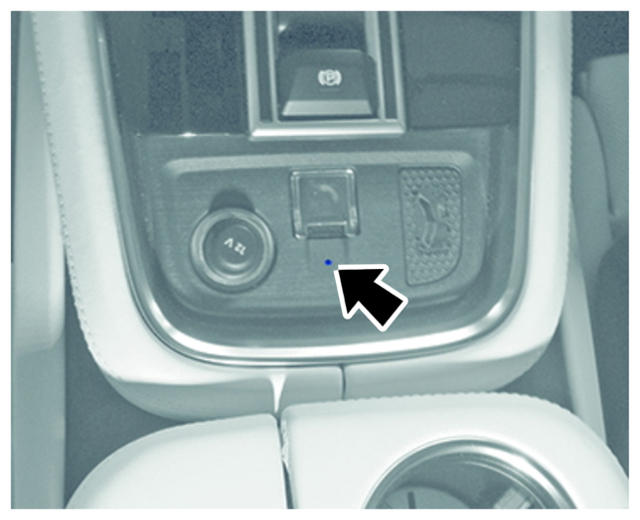

- Open the cover on the SOS button.
- Press the additional button for approx. 5 seconds using a suitable tool until you hear a "beep".
Additional button
- Make the emergency call system test call in order to check SIM card activation as follows.
Step Duration Red LED Green LED Description System announcement: "System Test" Off Flashing Self-test 30 seconds Off Flashing System announcement: "Press SOS button" Off Flashing Press SOS button Press for approx. 1 second within 20 seconds Off Flashing Stops flashing after pressing the SOS button System announcement: "Beep" Off Flashing Flashes only if SOS button was pressed before System announcement: "Press additional button" Off Flashing Press additional button Press for approx. 1 second within 20 seconds Off Flashing Stops flashing after pressing the additional button System announcement: "Beep" Off Flashing Flashes only if additional button was pressed before System announcement: "Recording" Off Flashing Test recording 10 seconds Off Flashing Recording your voice (e.g. Testing, Testing, 1, 2, 3) Playback 10 seconds Off Flashing Playback of test recording System announcement: "Press SOS button if test recording is played back correctly" Off Flashing Press SOS button Press for approx. 1 second within 20 seconds Off Flashing Only press the SOS button if the recording was played back correctly System announcement: "Beep" Off Flashing Flashes only if SOS button was pressed before Dialling On Flashing Sending Flashing Flashing System OK Off On Only if the system does not detect any faults System announcement: "Test successful" Off On System diagnostics and test call successful. SIM card is activated - LED on SOS button (centre console) lights up green and system announcement "Test successful". ERA GLONASS emergency call system is activated.
Information
The following scenarios are possible after completing the commissioning/activation process for an emergency call system that is not fully functional:
- LED on SOS button flashes or lights up red: System fault; read out fault memory
- LED on SOS button flashes or lights up red and system announcement "Test failed": System fault or network connection fault
- LED on SOS button lights up green and system announcement "Test failed": Network connection fault; contact importer
