Removing Era Glonass Emergency Call System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

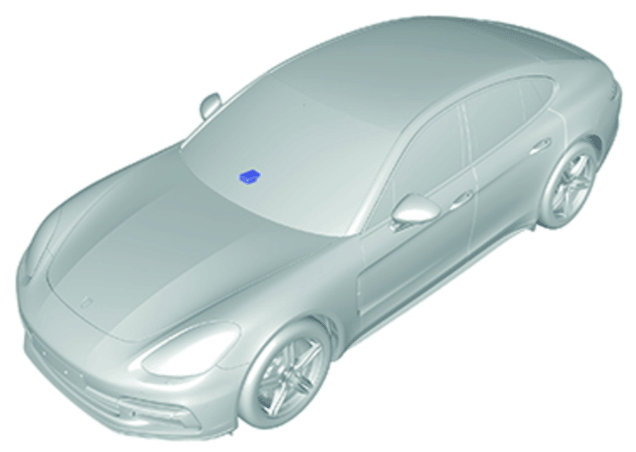

Installation position

1. Open the glove compartment.
2. Pull cover on communication box forward and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

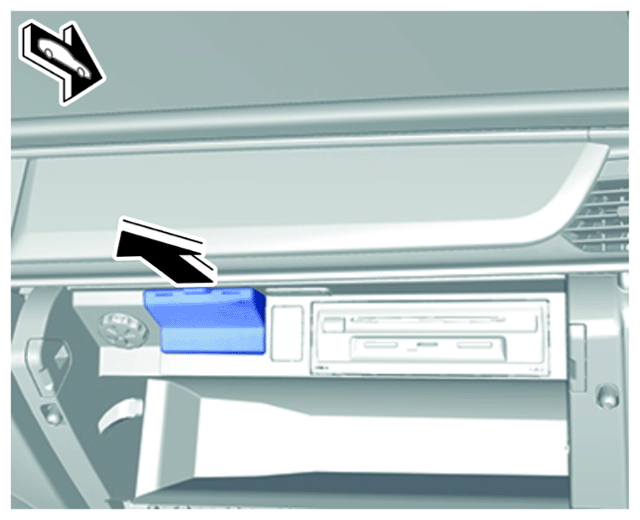

   Cover on communication box

3. Unscrew screw on communication box.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

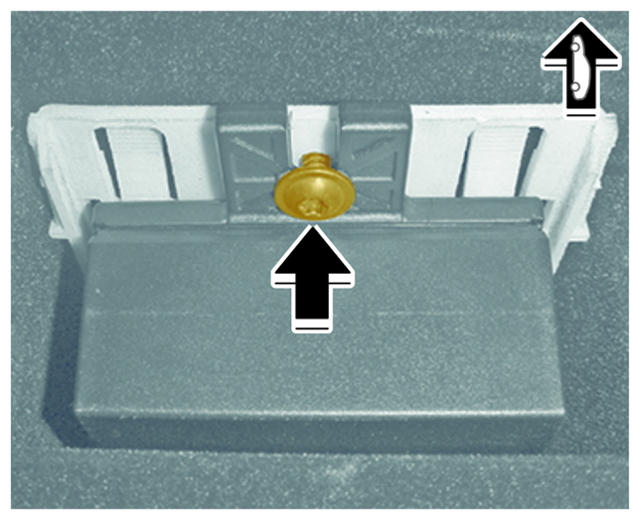

   Mounting for communication box

4. Pull communication box forward and remove it.
5. Release and disconnect electric plug connection.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

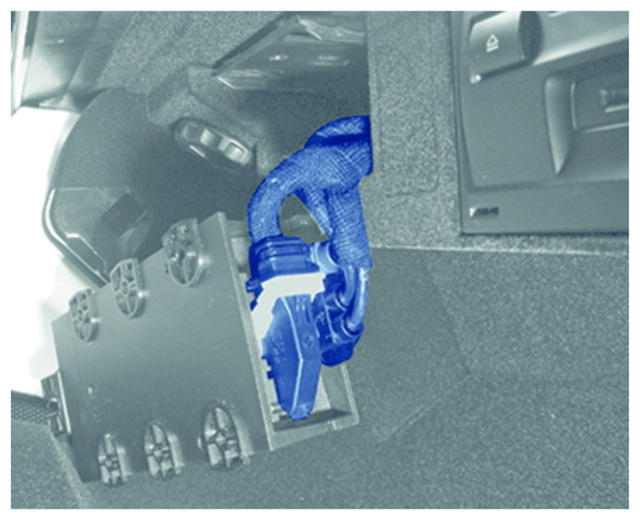

Electric plug connections
