Installing Era Glonass Emergency Call System

  1. Remove central computer.

    > WM, 915219 REMOVING AND INSTALLING CENTRAL COMPUTER

  2. Connect and lock electric plug connections at the communication box. The connector must engage securely.
  3. Push communication box into the slot.

    Pay attention to line routing. Guide electric lines for communication box through the slot for the central computer.

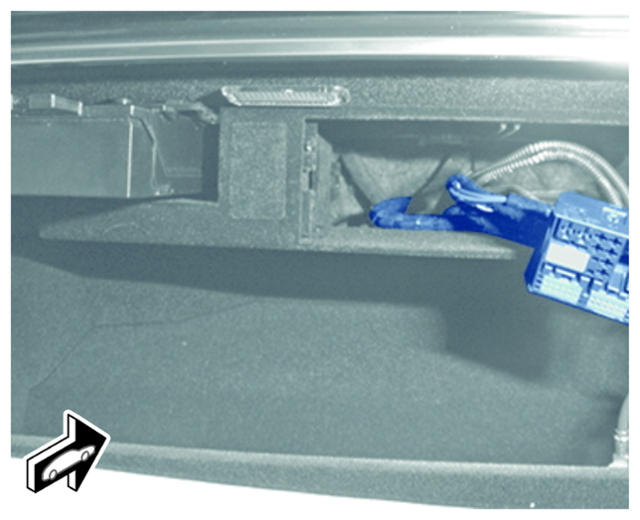

    G15875828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line routing for communication box

  4. Secure the communication box.

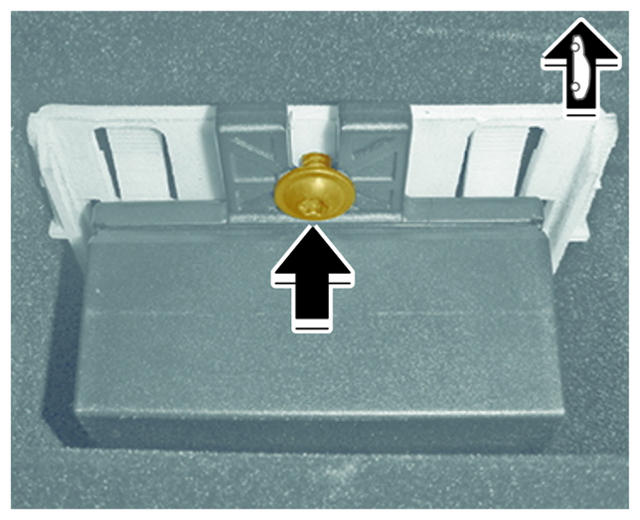

    G15875829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for communication box

    > Tightening torque 1.2 Nm (0.8 ftlb.)

  5. Install central computer.

    > WM, 915219 REMOVING AND INSTALLING CENTRAL COMPUTER

  6. Fit cover for communication box.
