Removing Display Unit

Information

• The steps required for removal are shown on the driver's side. The removal procedure is identical on the passenger's side.

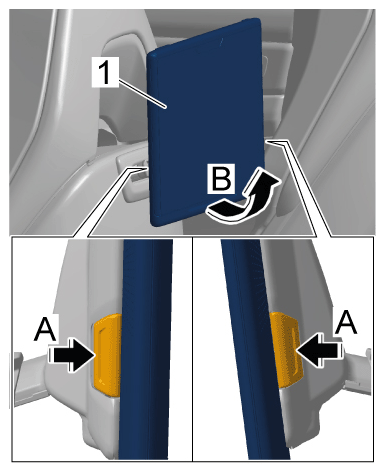

1. Remove display unit -1-  .
   1. 1.1 Release display unit -1-  (-arrows A-  ).
   2. 1.2 Swivel the display unit to the rear -arrow B-  and lift it up and off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Display unit
