91 Radio, On-Board Computer Park Assist -- 971 - PANAMERA (971)
>>
WM, 919319 Removing And Installing USB/IPOD Control Unit
>>
Removing USB/IPOD Control Unit
Removing USB/IPOD Control Unit
Release and disconnect electric plug connections
-2-
and unclip USB/IPOD control unit
-1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

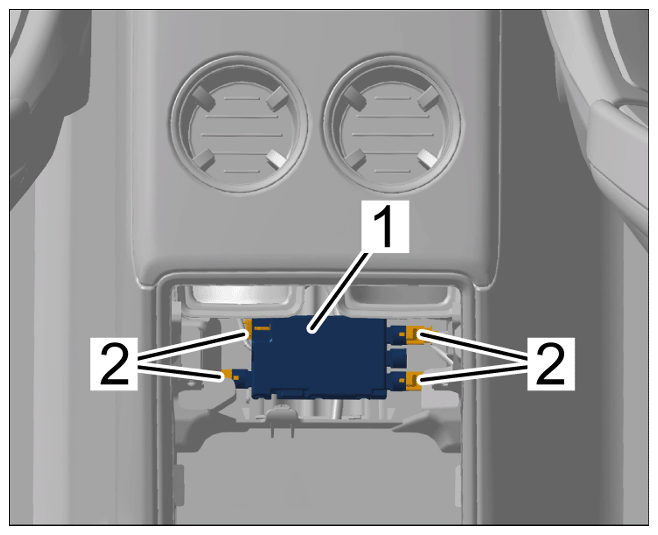

Removing USB/IPOD control unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
