Removing Antenna Control Unit
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
- Switch off ignition and remove remote control.
- Release and unplug electric plug connections -1-
.
Releasing and pulling off electric plug connections

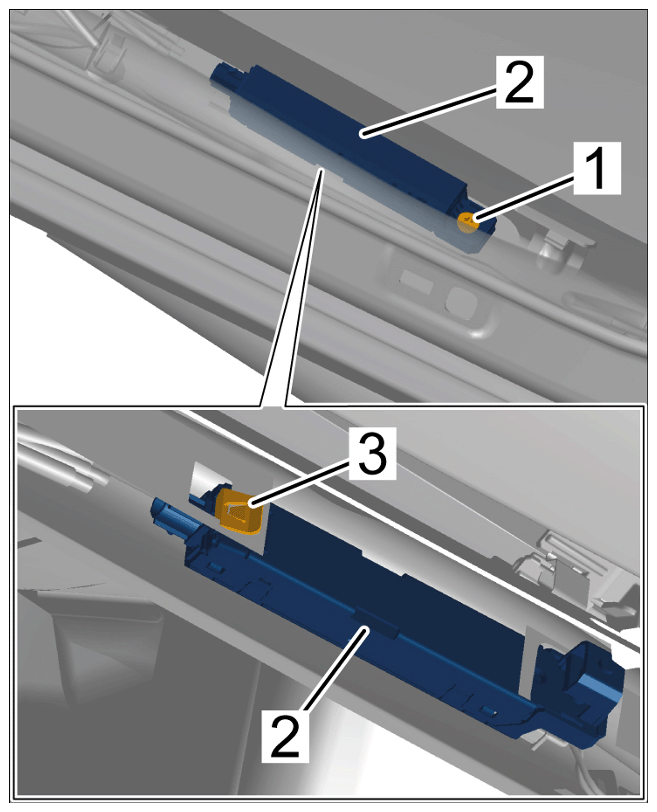

- Unscrew screw -1- and remove antenna control unit -2- from the bracket -3- .
Removing antenna control unit
