Technical Values

Location	Des...	Type	Basic val...	Toleranc...

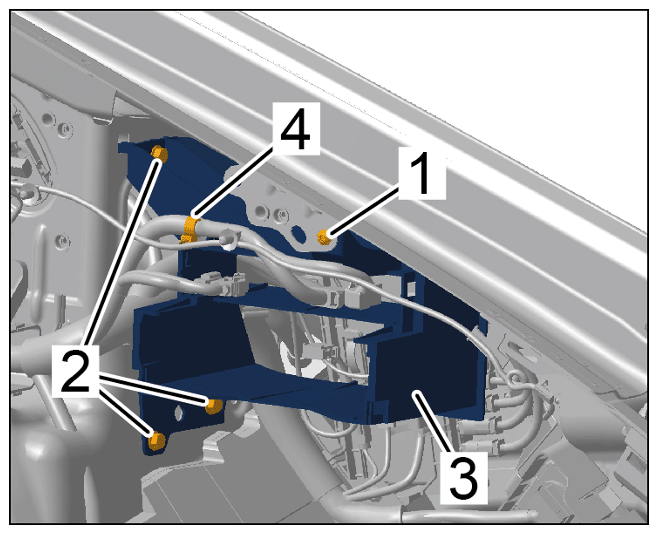

Screw on D-pillar bodyshell holder	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on D-pillar bodyshell holder
Screws on C-pillar holder	Item 8	Tightening torque	8 Nm (6 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on C-pillar holder

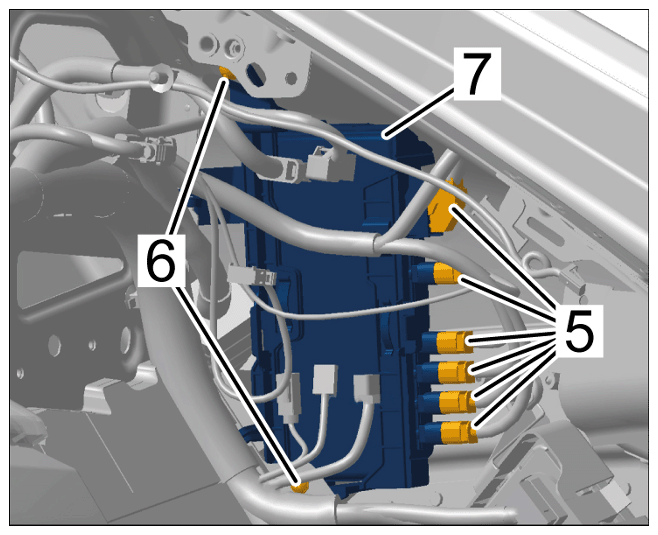

Screws on Surround View camera control unit	Item 6	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on Surround View camera control unit
