Removing Surround View Camera Control Unit

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until just before installation.
Do not touch electric pins and plug contacts.

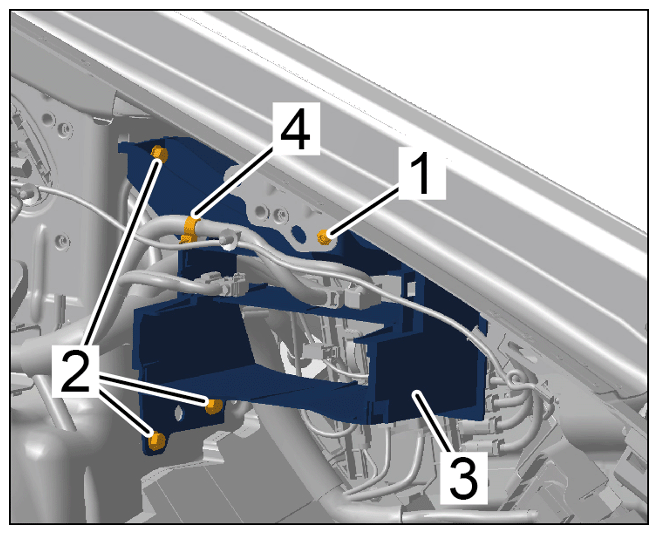

Remove holder -3- .
1. 1.1 Unclip line bracket -4- .
2. 1.2 Unscrew screws -1- and -2- .
3. 1.3 Remove holder -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket

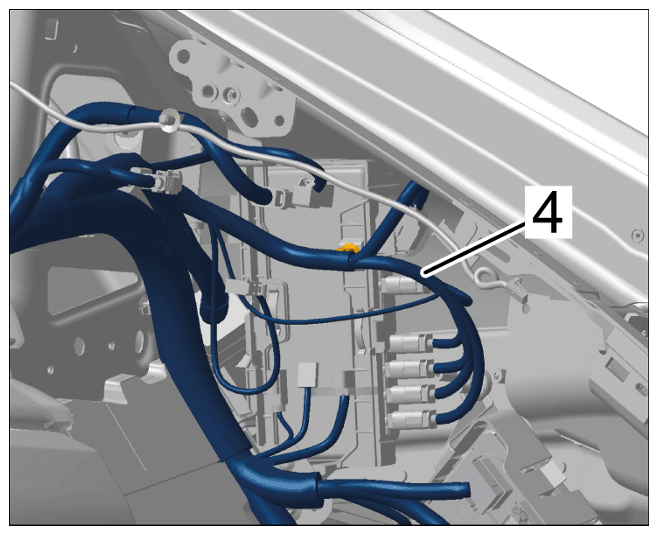

Unclip electric wire harness -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

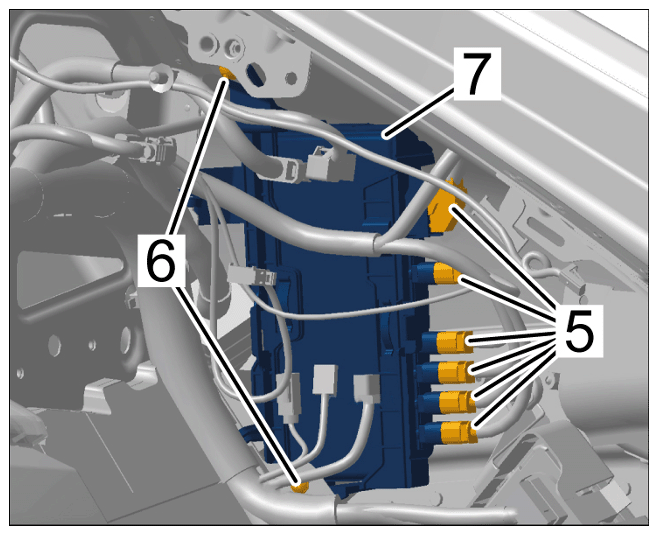

Remove Surround View camera control unit -7- with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Surround View camera control unit
1. 3.1 Release and unplug electric plug connections -5- .
2. 3.2 Unscrew screws -6- and remove Surround View camera control unit with holder -7- .

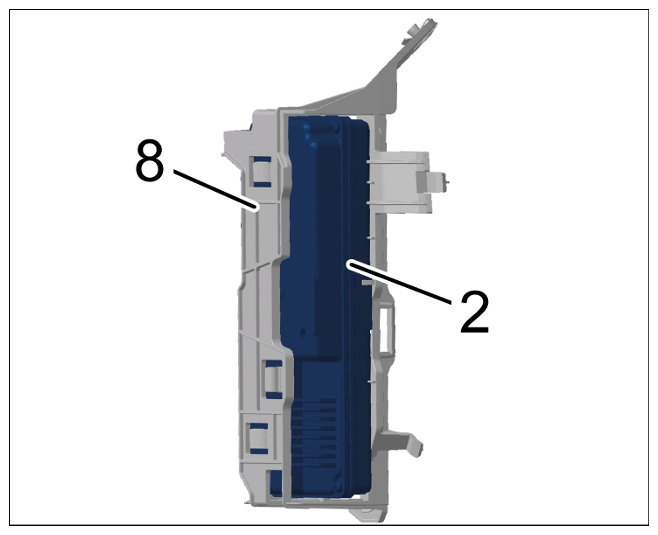

Remove Surround View camera control unit -2- from holder -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Surround View camera control unit in holder
