Removing Central Computer: Notes

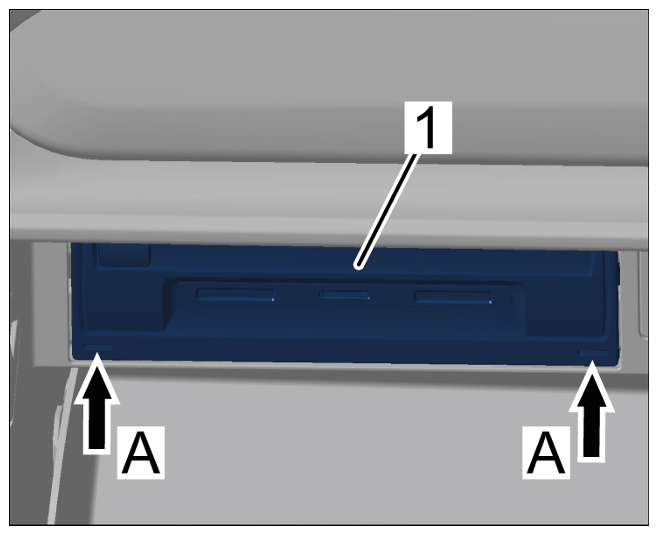

  1. Release central computer -1-  using > 9570/1 - disassembly tool  (-arrows A-  ) and pull it out until the electric plug connections are accessible.
    G15875747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Central computer

    Information

    The number of electric plug connections will vary depending on equipment.

  2. Release and disconnect electric plug connections.

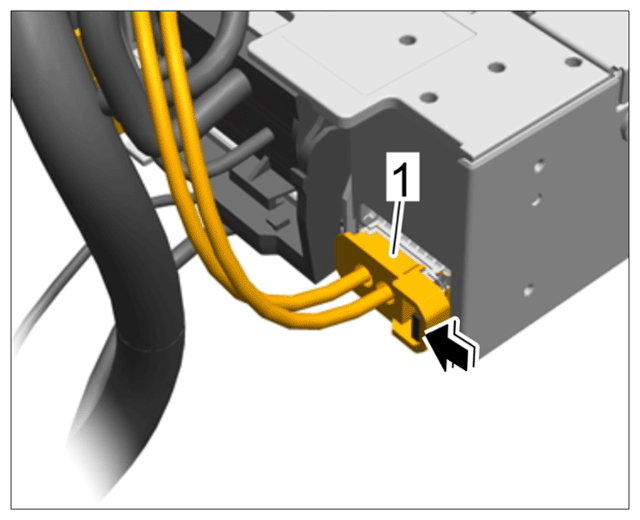

    1. 2.1 Release MOST plug connection -1-  (-arrow-  ) and disconnect it.
      G15875748Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      MOST plug connection

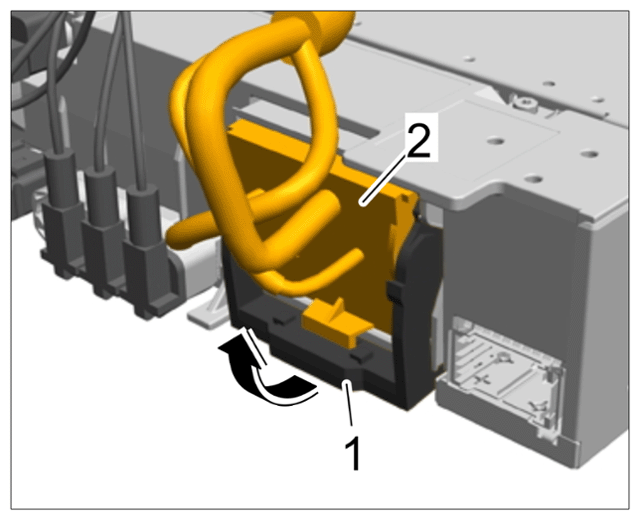

    2. 2.2 Release securing clip -1-  , swivel it upwards -arrow-  and disconnect combination connector -2-  .
      G15875749Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Combination connector

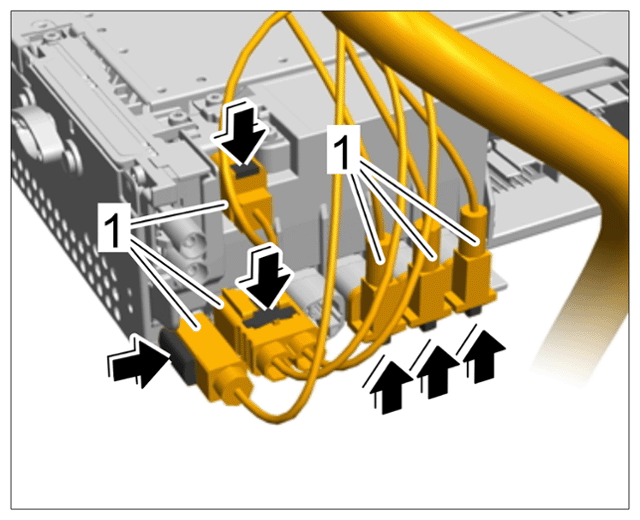

    3. 2.3 Release antenna connector -1-  (-arrows-  ) and disconnect it.
      G15875750Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Antenna connectors

  3. Remove central computer.
