Removing Loudspeaker Booster

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

Switch off ignition and remove remote control (hand-held transmitter).

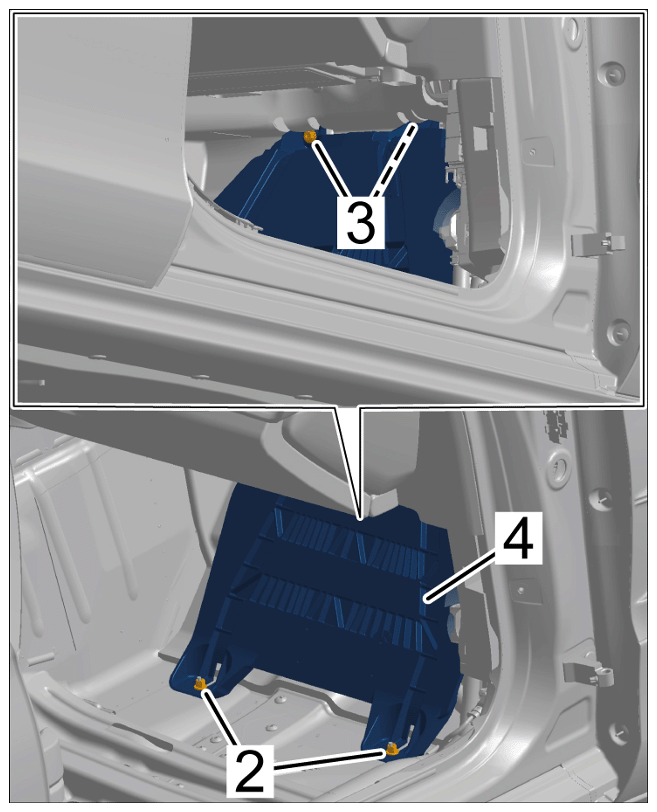

Loosen footrest -4- .
1. 2.1 Screw off nuts -2- and unscrew screws -3- .
2. 2.2 Lift the footrest -4- until the electric plug connections for the loudspeaker booster are accessible.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening footrest

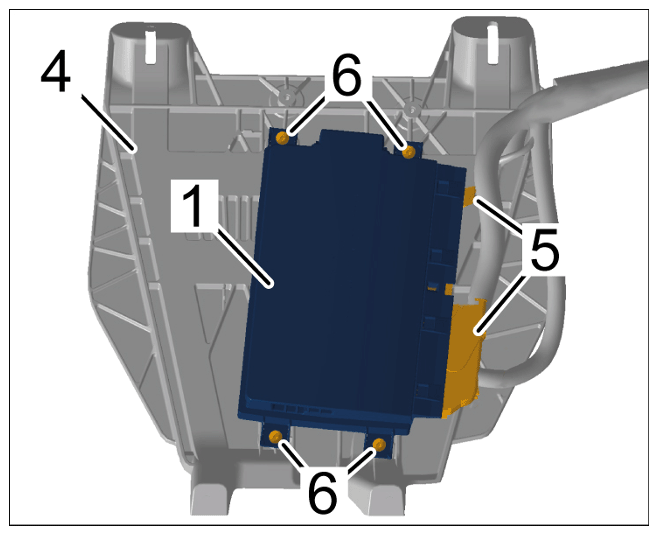

Remove loudspeaker booster -1- .
Information

The number of electric plug connections will vary depending on equipment.
1. 3.1 Release and disconnect electric plug connections -5- and remove footrest -4- .
2. 3.2 Unscrew screws -6- and remove loudspeaker booster -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing loudspeaker booster
