Preliminary Work

Information

Calibrating the reversing camera balances the tyres, chassis tolerances and installation tolerances of the camera.

• The  > VAS 6350A - Calibration unit and a  > VAS 6350/2A - Spacing laser are needed for calibration.
• During calibration, the control unit for the reversing camera calculates the vehicle-specific adjustment values (e.g. image rectification) for the camera image.
• After the actual calibration process, the rectified image can be seen on the vehicle display.

Information

Calibration must only be performed on level ground.

On vehicles with air suspension, switch on ignition, close the doors and set the air suspension level to Normal level (MEDIUM HEIGHT)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

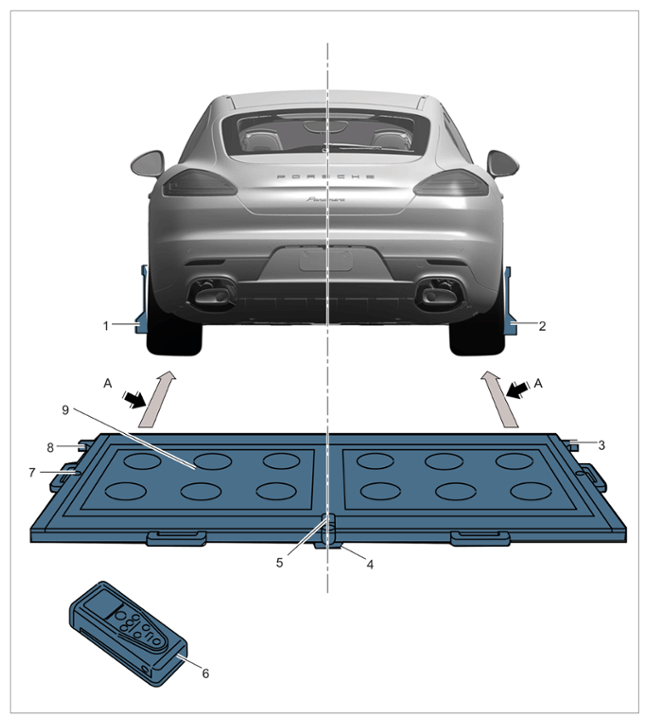

Overview and explanation of terms, shown on the Panamera

1. Park the vehicle on a level surface and set up the > VAS 6350A - Calibration unit  behind the vehicle in accordance with the operating instructions for VAS 6350.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

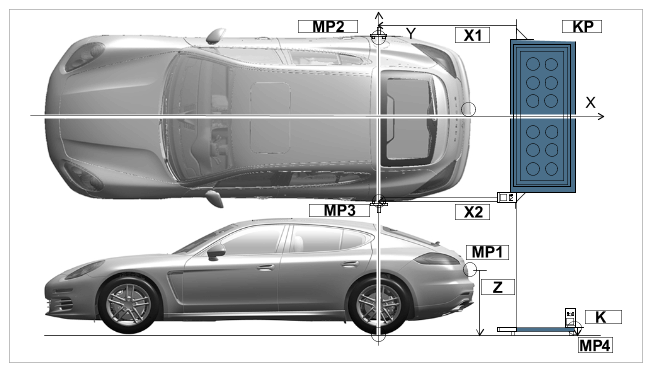

   Setup overview

   MP 1 to 4	Measuring points
   X1	Distance from calibration board to right reflector
   X2	Distance from calibration board to left reflector
   Z	Height of camera from floor
   K	Calibration board height

2. Fit the wheel nut supports and reflectors on the vehicle in accordance with the operating instructions for VAS 6350. The reflectors must be hanging freely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

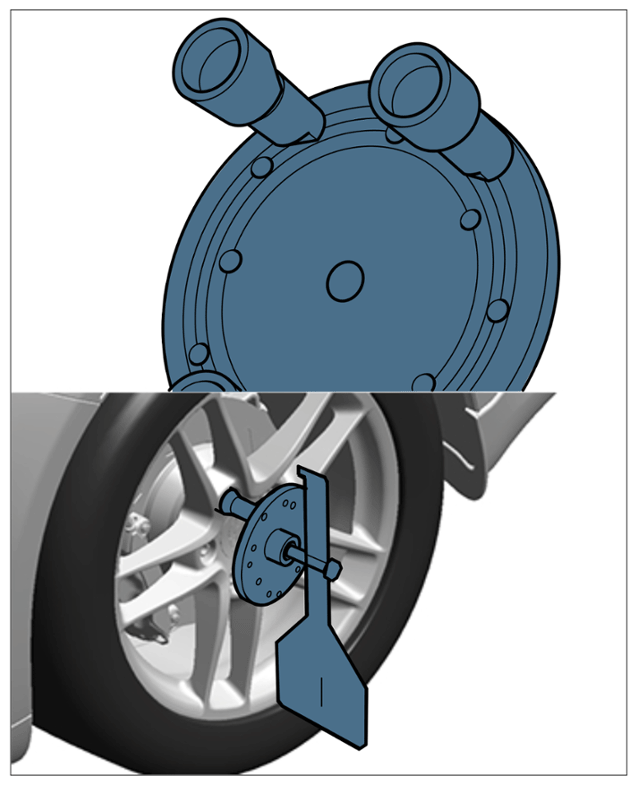

   Fitting reflectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

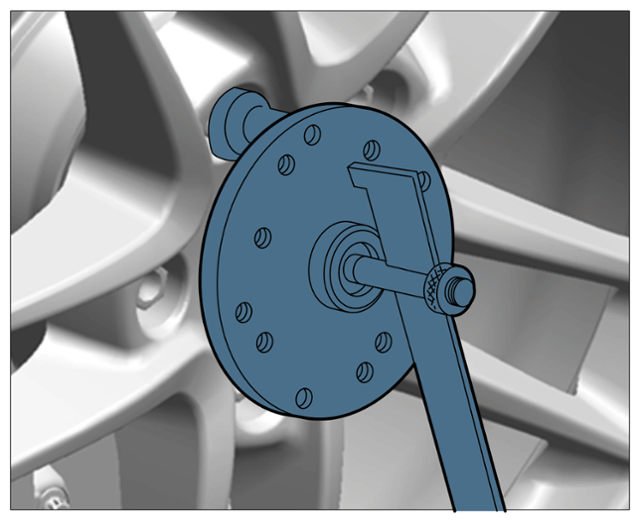

   Reflector must be hanging freely

3. Align the work surface with the centre of the vehicle and adjust the line laser to suit the calibration plate in accordance with the operating instructions for VAS 6350.
