Removing Rear Loudspeaker

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

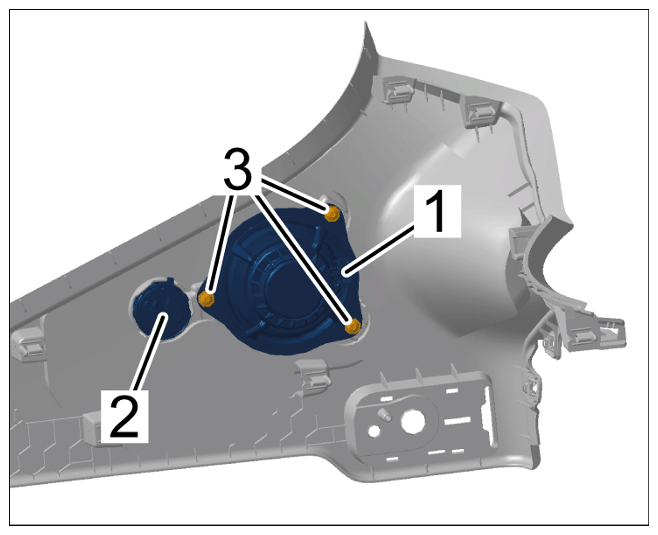

Unclip tweeter in D-pillar -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tweeter in D-pillar
Unscrew screws -3- and remove mid-range loudspeaker in D-pillar -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mid-range loudspeaker in D-pillar
