Removing Rear Display And Operator Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Unscrew and remove screw -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

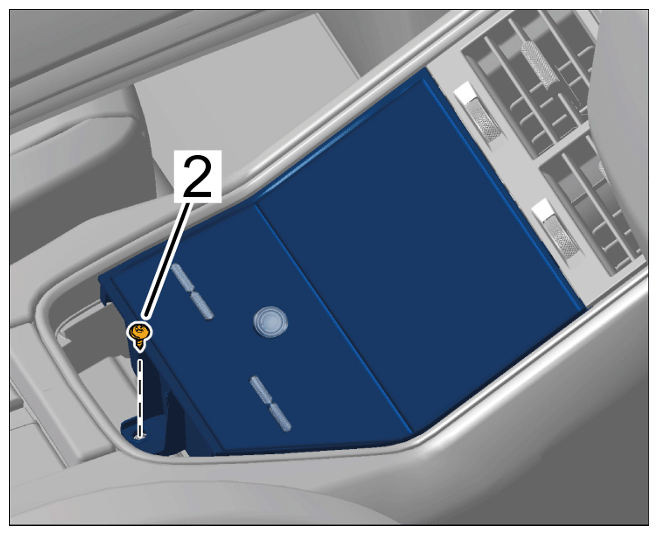

   Unscrewing screw

2. Remove rear display and operator control unit -1-  .
   1. 2.1 Carefully lift up rear display and operator control unit -1-  (-A-  ) and unclip it at the front -B-  .
   2. 2.2 Disconnect electric plug connection -3-  and remove rear display and operator control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

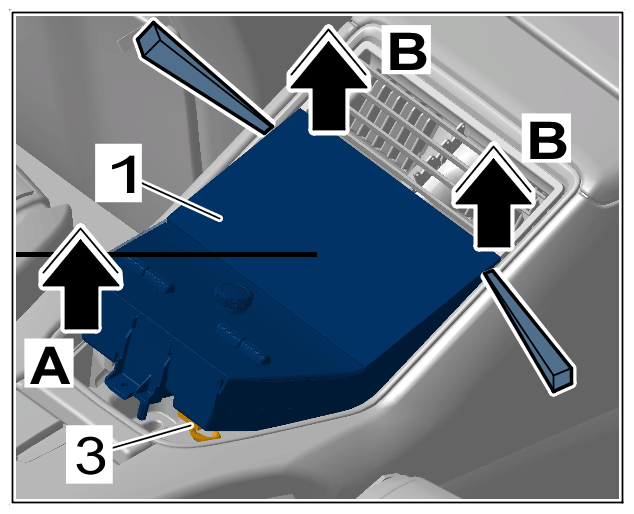

   Rear display and operator control unit
