Removing Multimedia Interface

  1. Remove multimedia interface.

    Information

    • The multimedia interface is clipped into the package box with 4 locking lugs.
    1. 1.1 Unclip multimedia interface -1-  by pulling it upwards -arrow-  .
    2. 1.2 Release and disconnect electric plug connections -2-  .

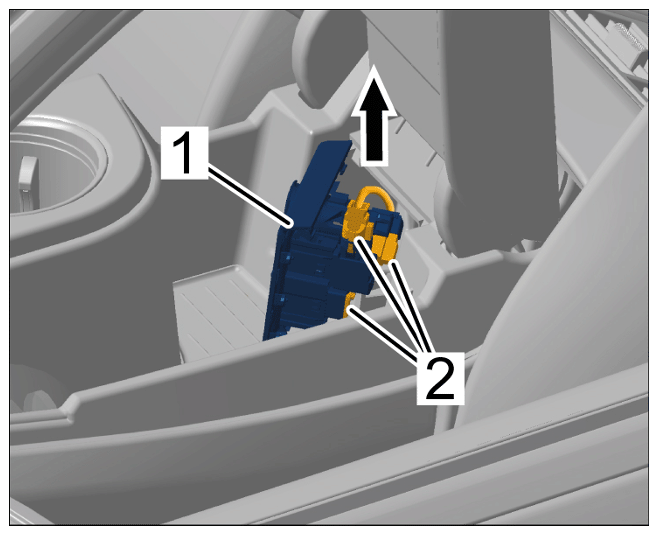

      G15875668Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping multimedia interface
