Preliminary Work

  1. Switch off ignition and remove remote control (hand-held transmitter).
  2. Remove cover on camera -1-  .
    1. 2.1 Unclip cover on camera -1-  by pulling it forward -arrow A-  .
    2. 2.2 Slide cover on camera -1-  out of the guide lugs -2-  and remove it.

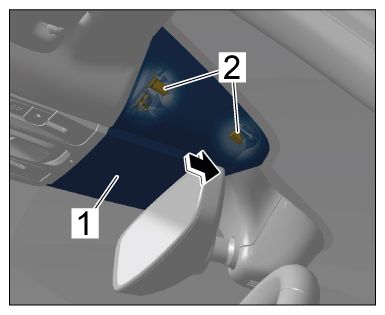

    G15875657Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping cover on camera
