Removing Pcm Display And Operator Control Unit
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
- Switch off the ignition.
- Guide PCM display and operator control unit -1-
down and out.

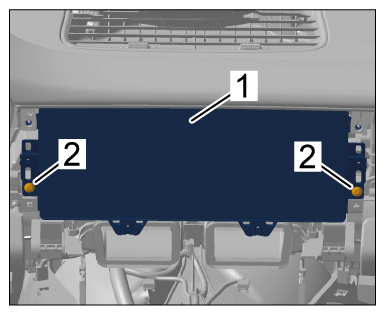

- 2.1 Unscrew and remove screws -2- .
- 2.2 Guide PCM display and operator control unit -1- down and out.
PCM display and operator control unit
- Remove PCM display and operator control unit -1-
.

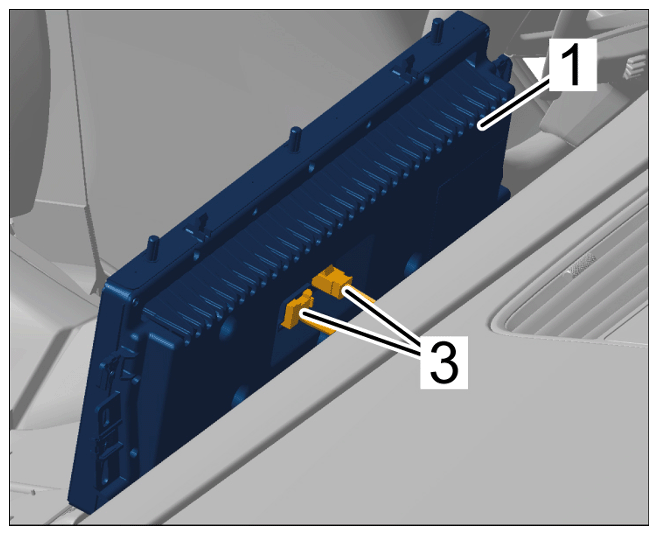

- 3.1 Release and unplug electric plug connections -3- .
- 3.2 Remove PCM display and operator control unit -1- .
Display and operator control unit
