Preliminary Work: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper chain housing cover.

    Removing and installing upper chain housing cover (V6 Turbo)

  2. Remove centre intake-air distributor.

    > 244619 - REMOVING AND INSTALLING CENTRE INTAKE-AIR DISTRIBUTOR

  3. Remove brake booster vacuum pump.

    > 477619 - REMOVING AND INSTALLING BRAKE BOOSTER VACUUM PUMP

  4. Remove left engine carrier -1-  .

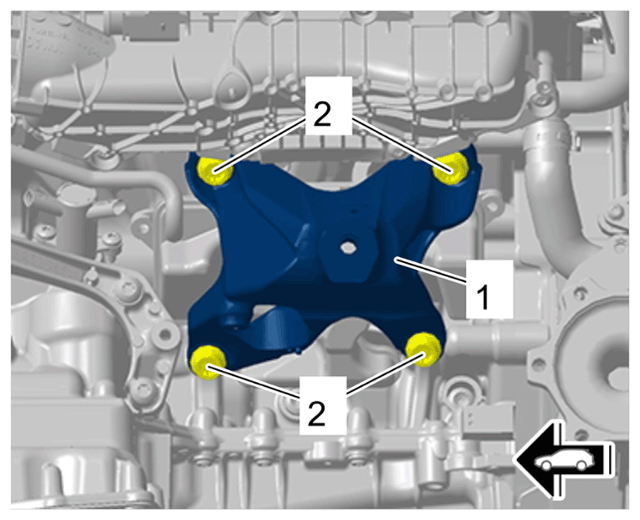

    G15145742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left engine carrier

    1. 4.1  Remove screws -2-  .
    2. 4.2  Remove left engine carrier -1-  .
  5. Remove vacuum reservoir -1-  .

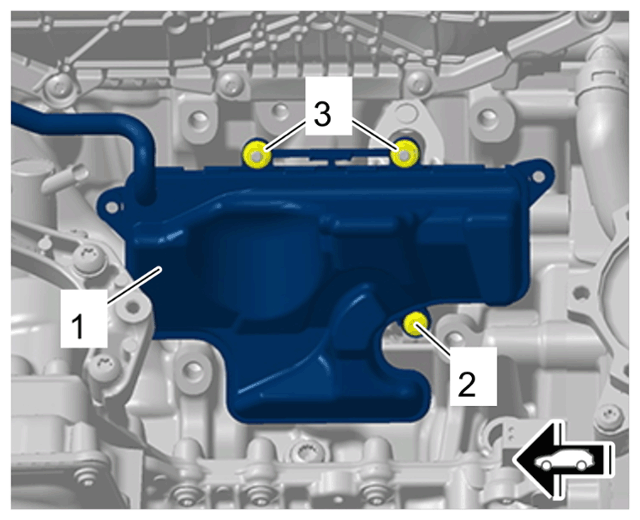

    G15145743Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum reservoir

    1. 5.1  Remove screws -2-  .
    2. 5.2  Unscrew nuts -3-  .
    3. 5.3  Remove vacuum reservoir -1-  and set it aside.
  6. Secure engine to assembly support.

    > 100113 - SECURING ENGINE ON ASSEMBLY SUPPORT (V6 TURBO)
