Removing Guide And Tensioning Rails - Left Cylinder Bank

WARNING: This page is about a different variant/trim than selected.
  1. Remove guide and tensioning rails -1 and 2-  .
    1. 1.1  Remove guide rail -1-  .
      1. 1.1.1  Unscrew screws -3-  .
      2. 1.1.2  Guide out and remove guide rail -1-  .
    2. 1.2  Remove tensioning rail -2-  .
      1. 1.2.1  Unscrew bearing pin -4-  .
      2. 1.2.2  Guide out and remove tensioning rail -2-  .

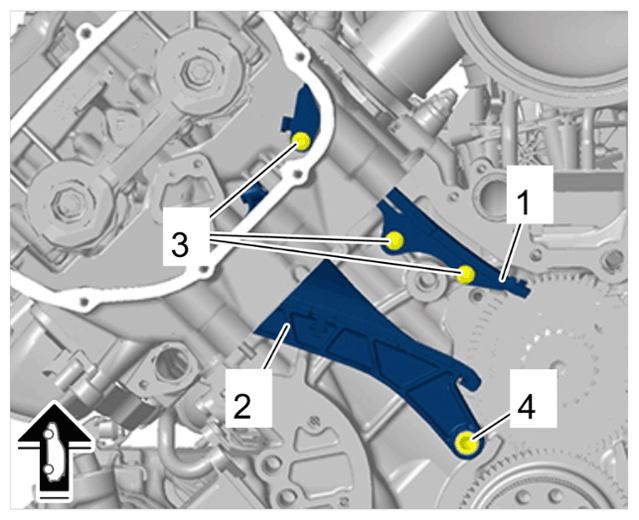

      G15145645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Guide and tensioning rails - left cylinder bank

  2. Remove slide -1-  .
    1. 2.1  Carefully insert a suitable tool between the slide -1-  and holder -2-  .
    2. 2.2  Carefully lift the locking lug -3-  of the slide -1-  out of the recess -4-  in the holder -2-  .
    3. 2.3  Pull slide -1-  forward away from the cylinder head.

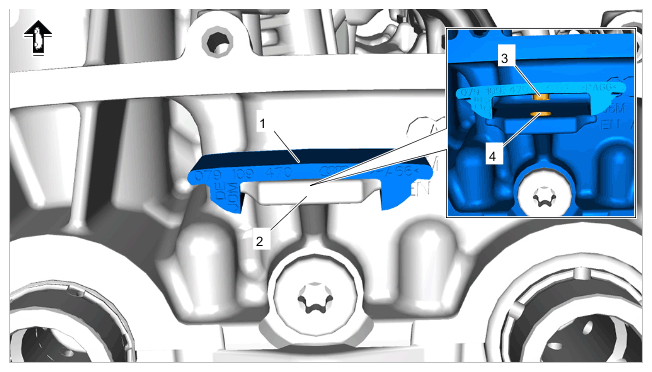

    G15145646Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Slide
