Installing Guide And Tensioning Rails - Right Cylinder Bank

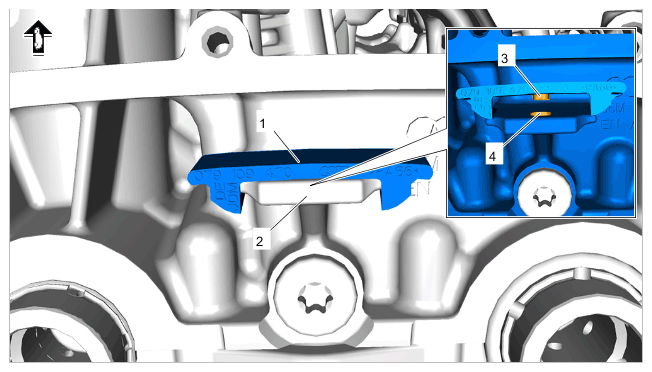

1. 1.1  Push slide -1-  onto holder -2-  until the locking lug -3-  engages in the cut-out -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Slide

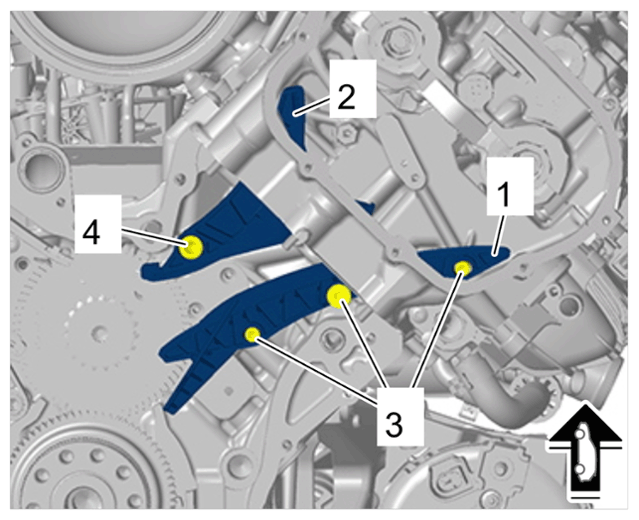

1. 2.1  Install guide rail -1-  .
   1. 2.1.1  Position guide rail -1-  .
   2. 2.1.2  Fit and tighten new  bearing pins -3-  .

      Initial tightening 5 Nm (3.5 ftlb.)

      Torque angle + 45°

2. 2.2  Install tensioning rail -2-  .
   1. 2.2.1  Position tensioning rail -2-  .
   2. 2.2.2  Fit and tighten bearing pins -4-  .

      > Tightening - torque 23 Nm (17 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Guide and tensioning rails - right cylinder bank
