Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install new crankshaft sealing ring (flywheel side).
> 135955 - REPLACING CRANKSHAFT SEALING RING - FLYWHEEL SIDE (V6 TURBO)
Install flywheel.
> 136019 - Removing and installing flywheel (V6 turbo) , Refer to the appropriate service information
Install pulse sender.
> 287319 - REMOVING AND INSTALLING PULSE SENDER (V6 TURBO)
Install upper chain housing cover.
> 153319 - REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V6 TURBO)

Only after removing upper chain housing cover on right cylinder bank:

Install additional coolant pump holder -1- .

1.1 Position additional coolant pump holder -1- , fit double screw securing holder to chain housing cover -3- and tighten it.
> Tightening - torque 9 Nm (6.5 ftlb.)

1.2 Fit and tighten screws securing additional coolant pump to holder -2- .

> Tightening - torque 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

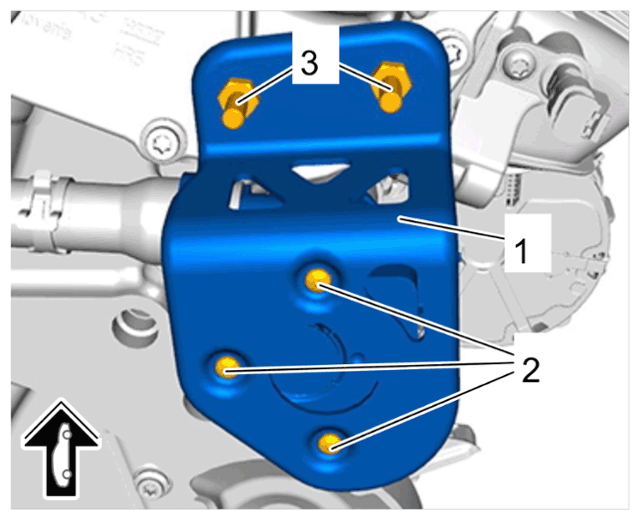

Additional coolant pump (right cylinder bank)

For engine with particle filter
Install particle filter.

> 267419 - REMOVING AND INSTALLING PARTICLE FILTER
For engine without particle filter
Install catalytic converter.

> 267319 - REMOVING AND INSTALLING CATALYTIC CONVERTER
Install the engine.
> 100119 - REMOVING AND INSTALLING ENGINE
Fill up coolant.
> 193817 - DRAINING AND FILLING COOLANT
