Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper chain housing cover.

    > 153319 - REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V6 TURBO)

  2. Remove pulse sender.

    > 287319 - REMOVING AND INSTALLING PULSE SENDER (V6 TURBO)

  3. Remove drive plate.

    > 136319 - REMOVING AND INSTALLING DRIVE PLATE



  1. Remove the engine.

    > 100119 - REMOVING AND INSTALLING ENGINE

  2. For engine with particle filter

    Remove particle filter.

    > 267419 - REMOVING AND INSTALLING PARTICLE FILTER

  3. For engine without particle filter

    Remove catalytic converter.

    > 267319 - REMOVING AND INSTALLING CATALYTIC CONVERTER

  4. Only for removing upper chain housing cover on right cylinder bank:

    Remove additional coolant pump holder -1-  .

    1. 4.1  Unscrew screws for additional coolant pump -2-  at the holder -1-  .
    2. 4.2  Unscrew double screw for additional coolant pump holder -3-  .
    3. 4.3  Remove additional coolant pump holder -1-  .

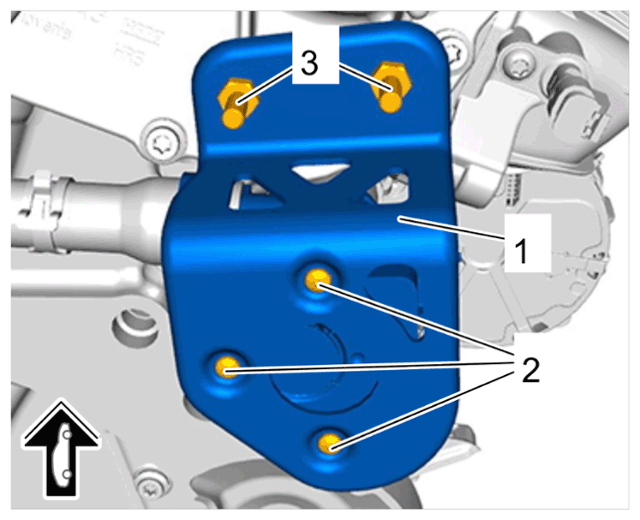

    G15145583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump (right cylinder bank)
