Subsequent Work
WARNING: This page is about a different variant/trim than selected.
- Remove all staking tools.
- Install stoppers on camshafts -1-
.
- 2.1
Insert stoppers on camshafts -1-
.
- 2.2
Fit and tighten screws for stoppers -1-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

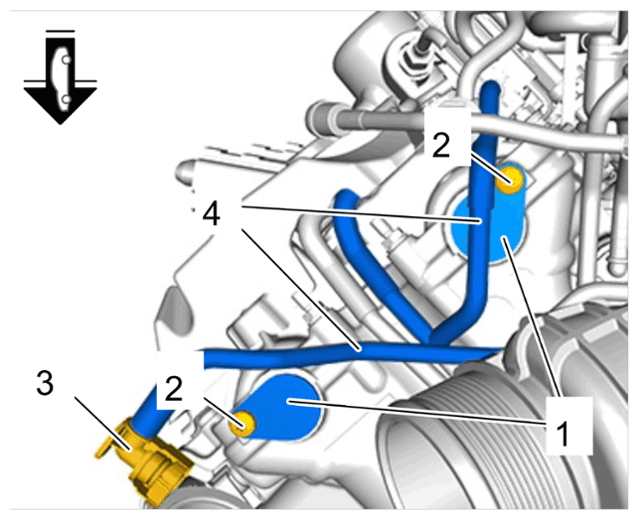

Stoppers on camshafts.
- Install screw plug for crankshaft -1-
.
- 3.1
Replace O-ring on screw plug for crankshaft.
- 3.2
Position holder for vacuum reservoir -3-
.
- 3.3
Screw in new screw plug for crankshaft -1-
into bore -2-
and tighten it.
> Tightening - torque 40 Nm (29.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

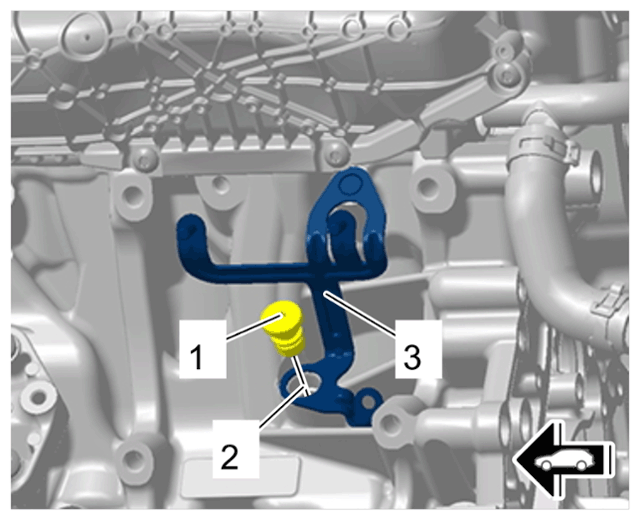

Screw plug for crankshaft
- Loosen engine from assembly support.
> 100113 - SECURING ENGINE ON ASSEMBLY SUPPORT (V6 TURBO)
- Install vacuum reservoir -1-
.
- 5.1
Position vacuum reservoir -1-
.
- 5.2
Screw on and tighten nuts -3-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
- 5.3
Fit and tighten screws -2-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

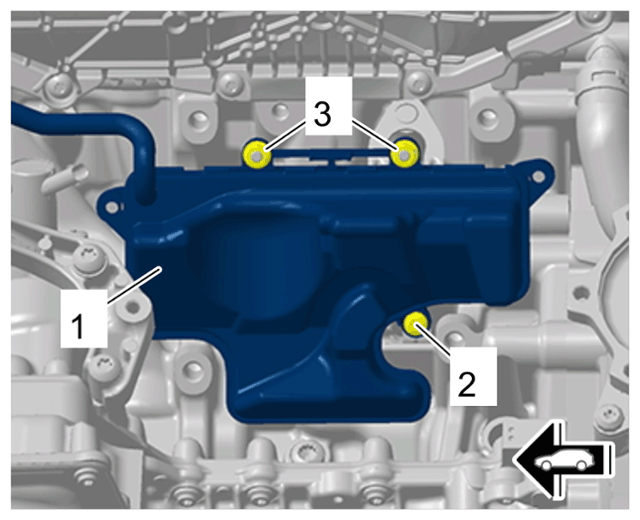

Vacuum reservoir
- Install left engine carrier -1-
.
- 6.1
Position left engine carrier -1-
.
- 6.2
Fit and tighten screws -2-
.
> Tightening - torque 50 Nm (37 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

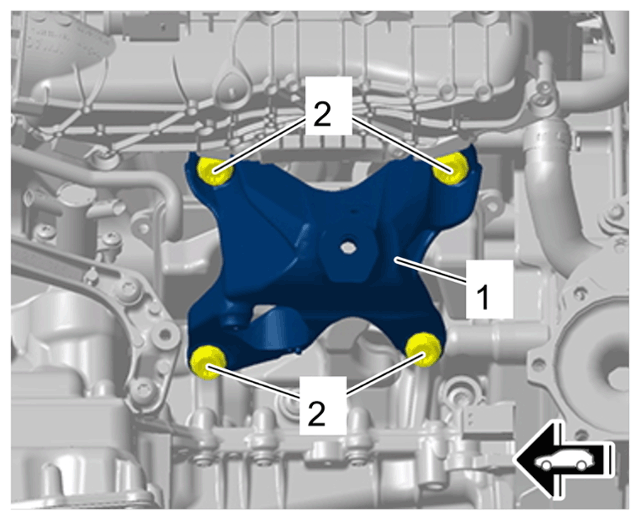

Left engine carrier
- Install brake booster vacuum pump.
> 477619 - REMOVING AND INSTALLING BRAKE BOOSTER VACUUM PUMP
- Install intake distributor centre.
> 244619 - REMOVING AND INSTALLING CENTRE INTAKE-AIR DISTRIBUTOR
- Install upper chain housing cover.
> 153319 - REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V6 TURBO)
