Setting Camshaft Timing
If the locking tools cannot be inserted as described:
- Remove all tools.
- Fit
VAS 261 001 - ring spanner insert, a/f 41
with T90001 - counter-hold tool
on the camshaft actuator.
The T90001 - counterhold tool can only be inserted at one position. To do this, the markings on the camshaft actuator -1- and chain housing -2- must be aligned.
Special tool T90001 on camshaft actuator
Information
Never use the camshaft clamps -T40331- as a counterhold tool for loosening the camshaft controllers.
- Release camshaft actuator -1- .
- Adapter T40331/2 -1-
from T40331 - screw camshaft clamp
tool set into the camshaft housing for cylinder bank 1 and tighten to 9 Nm (6.5 ftlb.).
Adapter on camshaft housing, cylinder bank 1
- Adapter T40331/3 -1-
from T40331 - screw camshaft clamp
tool set into the camshaft housing for cylinder bank 2 and tighten to 9 Nm (6.5 ftlb.).
Adapter on camshaft housing, cylinder bank 2
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.
Information
It may be necessary for another person to carefully position the camshafts at the actuators using T90001 - counterhold tool and VAS 261 001 - Ring wrench insert, a/f 41 .
- Install T40331 - camshaft clamp
.
- 6.1
Insert T40331 - camshaft clamp
.

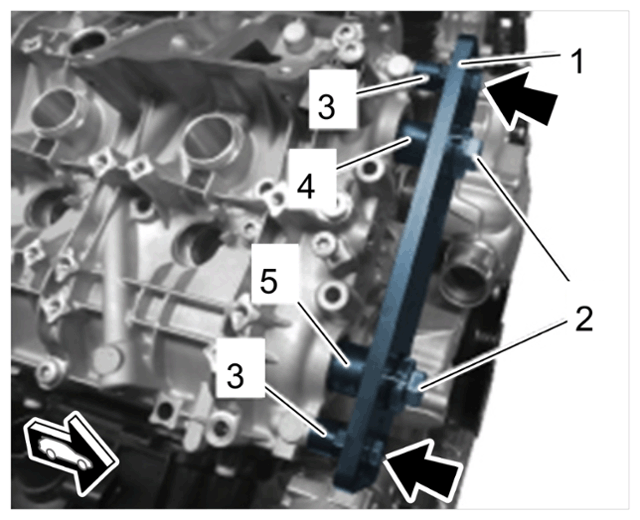

Cylinder bank 1
Camshaft clamps on cylinder bank 1
- T40331/1 - The letter "A" must be facing you.
- T40331/9
- T40331/2
- T40331/5 - Exhaust camshaft
- T40331/4 - Intake camshaft
- 6.1.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.).
- 6.2

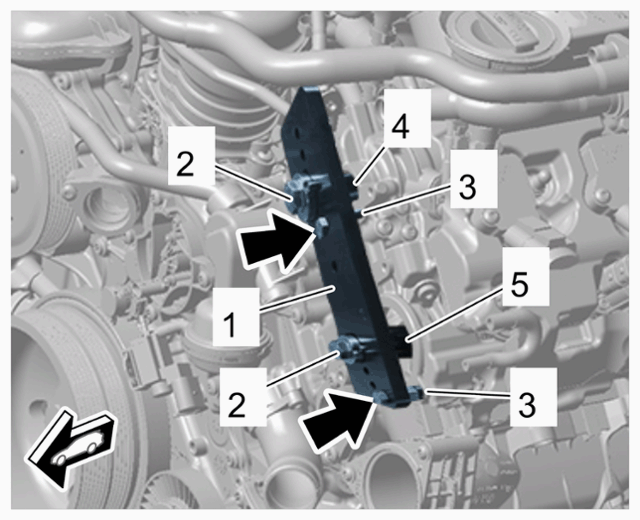

Cylinder bank 2
Camshaft clamps on cylinder bank 2
- T40331/1 - The letter "B" must be facing you.
- T40331/9
- T40331/3
- T40331/5 - Exhaust camshaft
- T40331/6 - Intake camshaft
- 6.2.1 Screw T40331/9 -2- in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.).
- 6.1
Insert T40331 - camshaft clamp
.
- Secure the crankshaft.

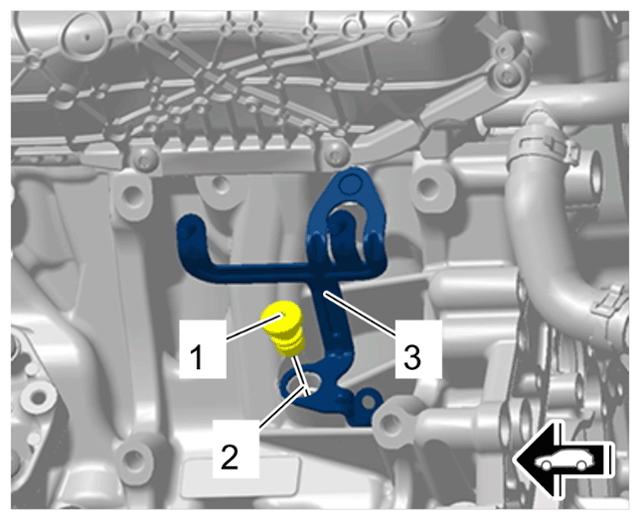

- 7.1 Unscrew screw plug -1- .
- 7.2 Remove holder for vacuum reservoir -3- .
- 7.3
Screw T40069 - locking pin
into the bore -2-
by hand.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 7.4
Tighten T40069 - locking pin
to 20 Nm (15 ftlb.).
Screw plug for crankshaft
Information
The markings on the camshaft actuators must be aligned with the reference points on the camshaft housing.
Information
Camshaft actuator must not be disassembled!
Friction plate in camshaft actuator
- The camshaft actuator must never be disassembled.

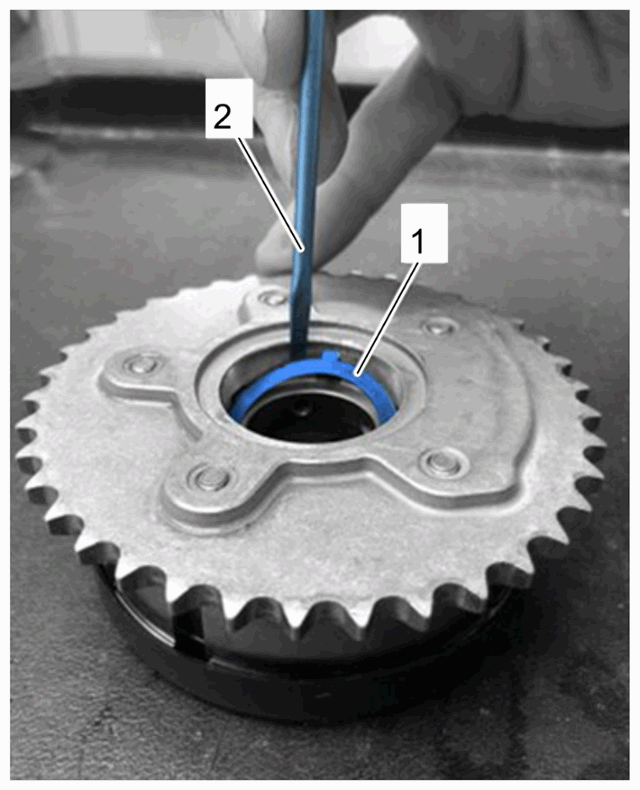

- To replace the friction plate -1- , lever it out carefully using a small slotted screwdriver -2- .

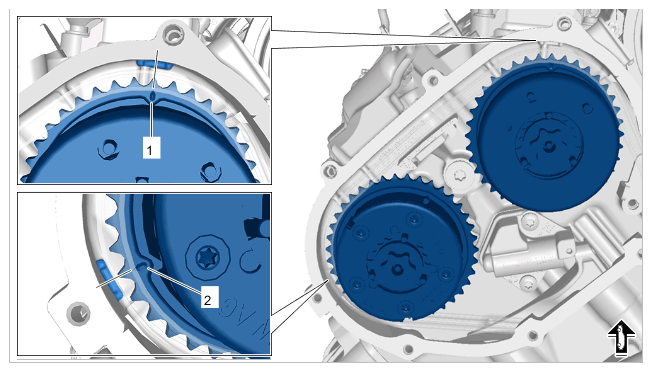

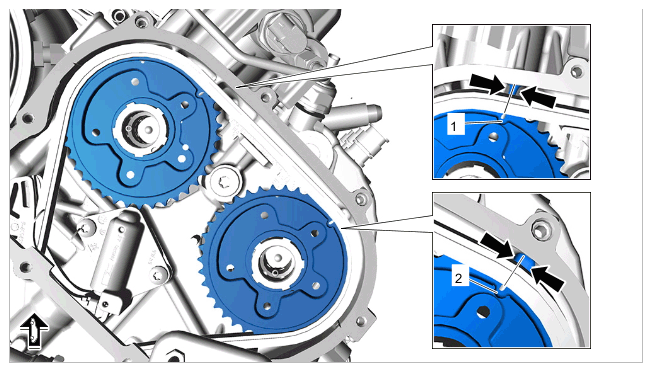

- The markings on the camshaft actuator (cylinder bank 1) -1 and 2-
must be aligned with the corresponding markings -Arrows-
on the camshaft housing.
If the markings on the camshaft actuator -1 and 2- are not aligned with the corresponding markings on the camshaft housing -Arrows- the camshaft actuators must be removed and positioned correctly.
Markings on camshaft actuator (cylinder bank 1)
Information
The markings on the camshaft actuators must be aligned with the reference points on the camshaft housing.
Information
Camshaft actuator must not be disassembled!
Friction plate in camshaft actuator
- The camshaft actuator must never be disassembled.
- To replace the friction plate -1- , lever it out carefully using a small slotted screwdriver -2- .

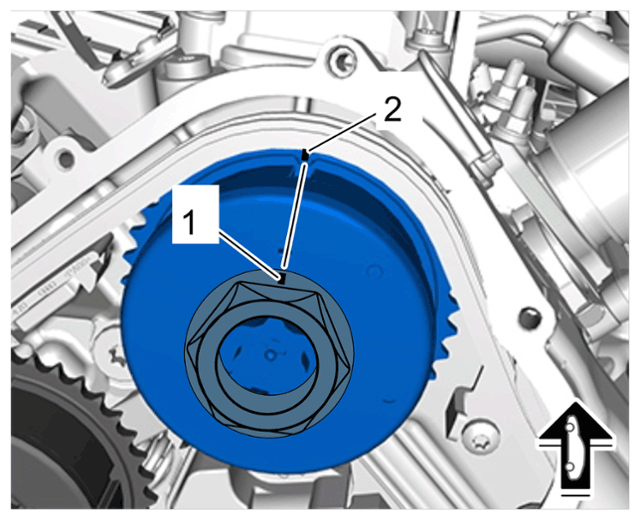

- The markings on the camshaft actuator (cylinder bank 2) -1 and 2-
must be aligned with the corresponding markings -Lines-
on the camshaft housing.
If the markings on the camshaft actuator -1 and 2- are not aligned with the corresponding markings on the camshaft housing -Lines- the camshaft actuators must be removed and positioned correctly.
Markings on camshaft actuator (cylinder bank 2)
Information
You will need a second mechanic to help you with this step.
- Tighten camshaft actuator -1 and 2-
.

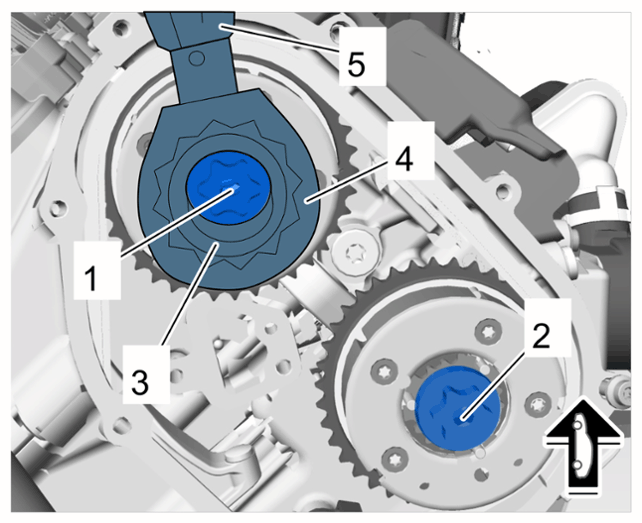

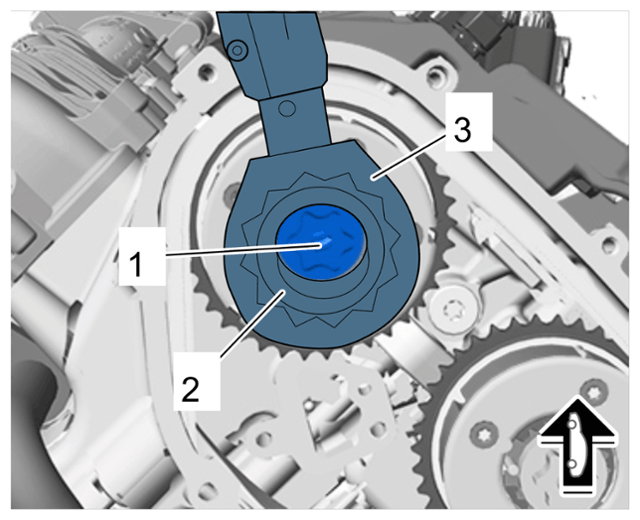

- 10.1 A second mechanic must use V.A.G 1331A - torque wrench 6-50 Nm (4.5-37 ftlb.)-5- with a VAS 261 001 -ring spanner insert a/f 41 -4- and T90001 - counter-hold tool-3- to pre-tension the camshaft actuators to 30 Nm (22 ftlb.) by turning them anti-clockwise and holding them securely.
- 10.2
Tighten camshaft actuators -1 and 2-
in the following sequence. (Camshaft actuator is still pre-tensioned)
- 10.2.1
Tighten intake camshaft actuator -2-
.
Initial tightening 30 Nm (22 ftlb.)
- 10.2.2
Tighten exhaust camshaft actuator -1-
.
Initial tightening 30 Nm (22 ftlb.)
Tightening of camshaft actuator
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- → Do not use force when fitting the staking tool.
- → Make sure that the gap is equal on both sides.
- → When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- → The engine must be exactly at top dead centre.
- → The opposite cylinder must be at ignition TDC.
- 10.2.1
Tighten intake camshaft actuator -2-
.
- Remove staking tools, perform two revolutions of the engine and check the timing again.
- 11.1 Secure the crankshaft using locking pin.
- 11.2 A second mechanic must use V.A.G 1331A - torque wrench 6-50 Nm (4.5-37 ftlb.) with VAS 261 001 - ring spanner insert, a/f 41 and T90001 - counter-hold tool to pre-tension the camshaft actuators to 30 Nm (22 ftlb.) by turning them anti-clockwise and holding them securely.
- 11.3 The camshaft fixing pin must insert easily. Do not insert the camshaft fixing pin using a hammer.
- 11.4
If the camshaft fixing pin cannot be inserted:
- 11.4.1 Remove camshaft fixing pin and locking pin on the crankshaft.
- 11.4.2 Plug the camshaft fixing pin as far into the camshafts as it will go. Turn the crankshaft slightly if necessary.
- 11.4.3 Loosen actuators by half a turn using the special tools.
- 11.4.4 Fix crankshaft in place with the locking pin and repeat the settings.
- Tighten camshaft actuator -1 and 2-
.

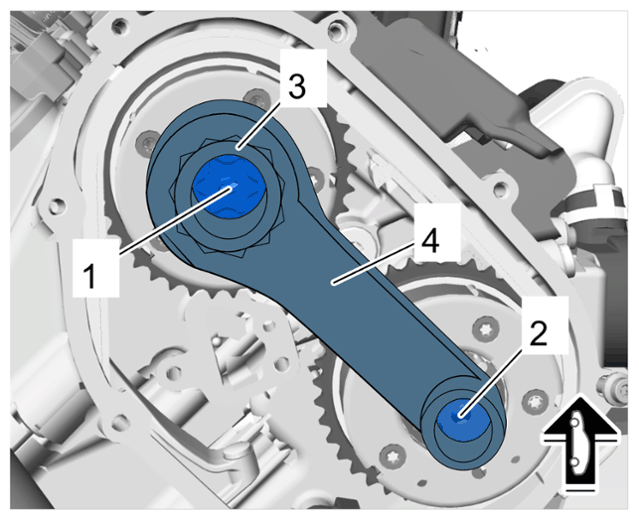

- 12.1 Fit T90001 - counter-hold tool-3- and T90002 - counter-hold tool-4- on the exhaust camshaft actuator -1- .
- 12.2
Support T90002 - counter-hold tool-4-
on the intake camshaft actuator -2-
.
Turn the crankshaft slightly to do this if necessary. (Only in direction of rotation of engine)
- 12.3
Tighten exhaust camshaft actuator -1-
.
Final tightening + 35°
- 12.4 Fit T90001 - counter-hold tool-3- and T90002 - counter-hold tool-4- on the intake camshaft actuator -2- .
- 12.5
Support T90002 - counter-hold tool-4-
on the exhaust camshaft actuator -1-
.
Turn the crankshaft slightly to do this if necessary. (Only turn clockwise)
- 12.6
Tighten intake camshaft actuator -2-
.
Final tightening + 35°
- 12.7
Remove T90001 - counter-hold tool-3-
and T90002 - counter-hold tool-4-
.
Final tightening of camshaft actuator
